Offer 351238

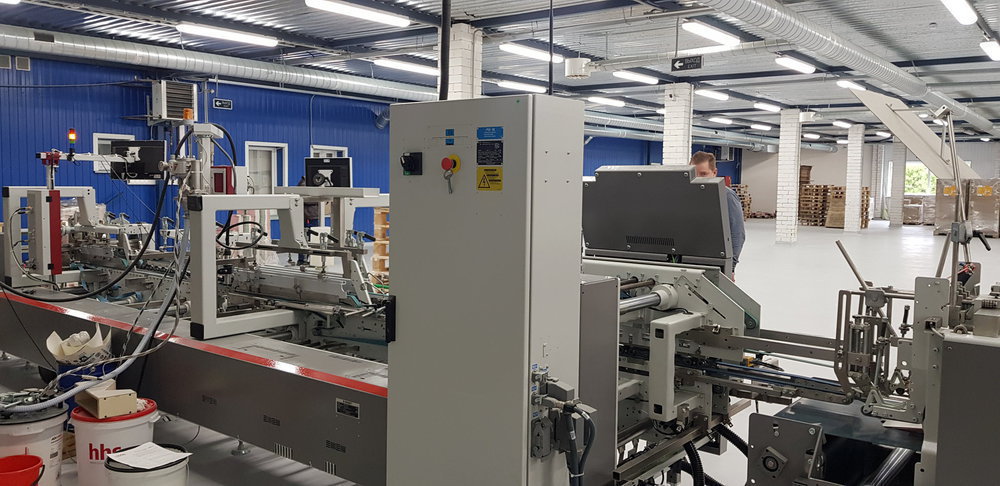

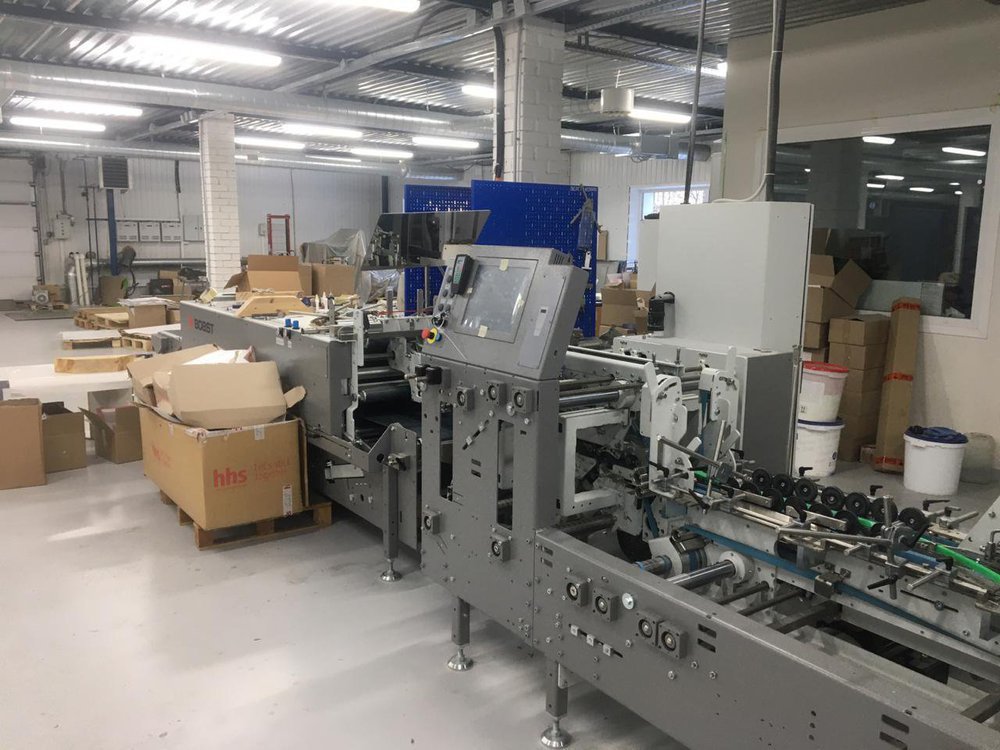

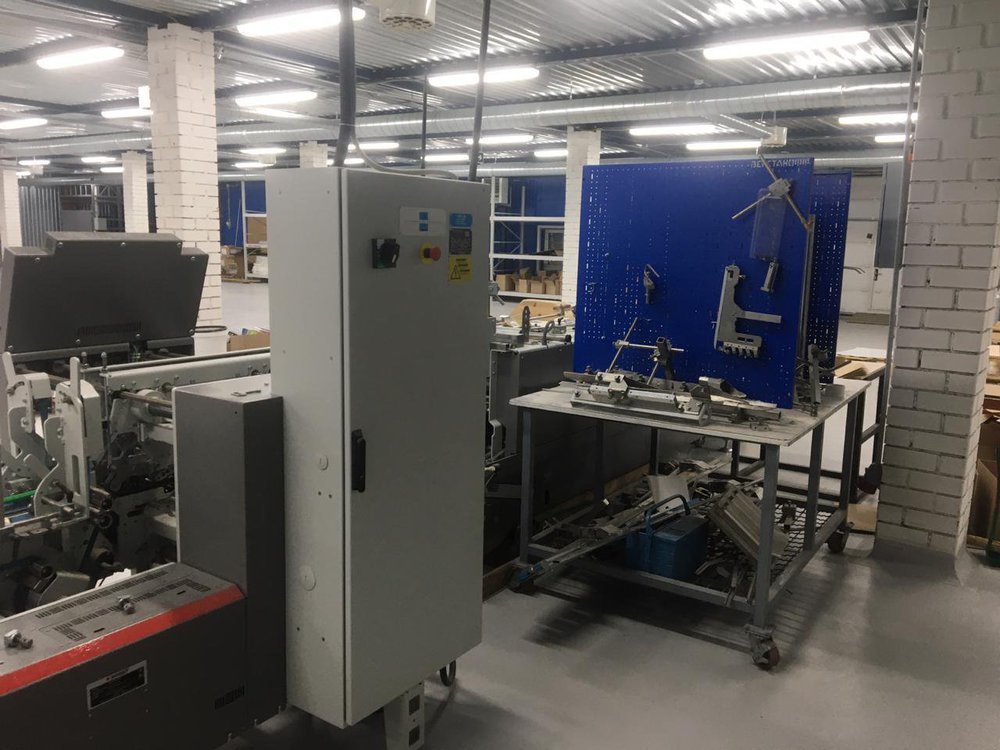

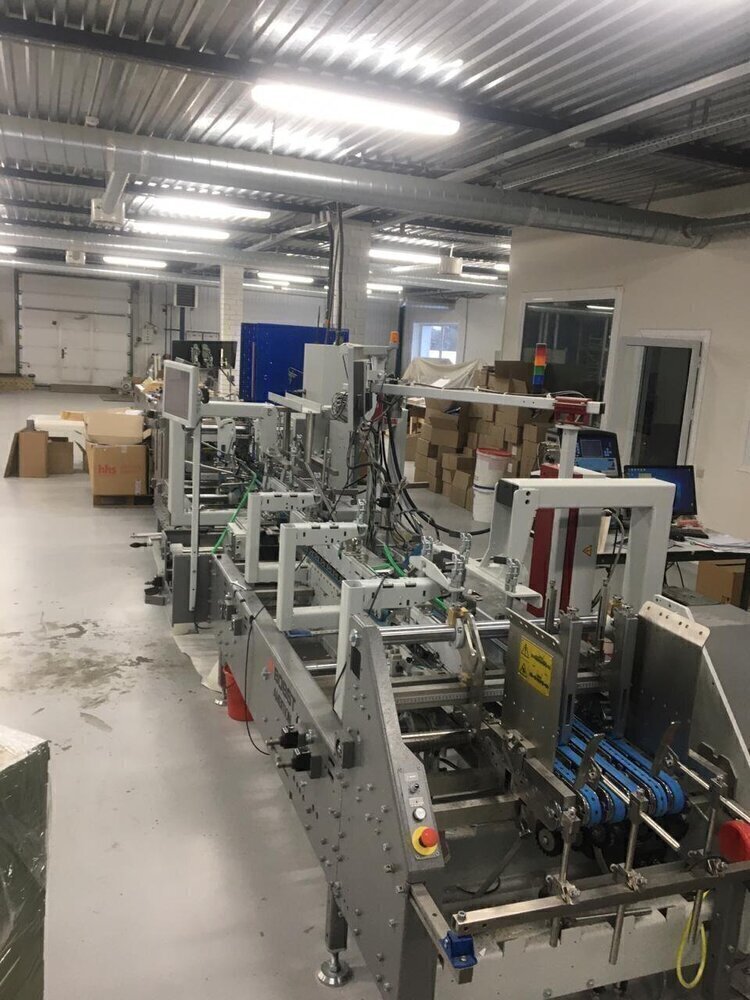

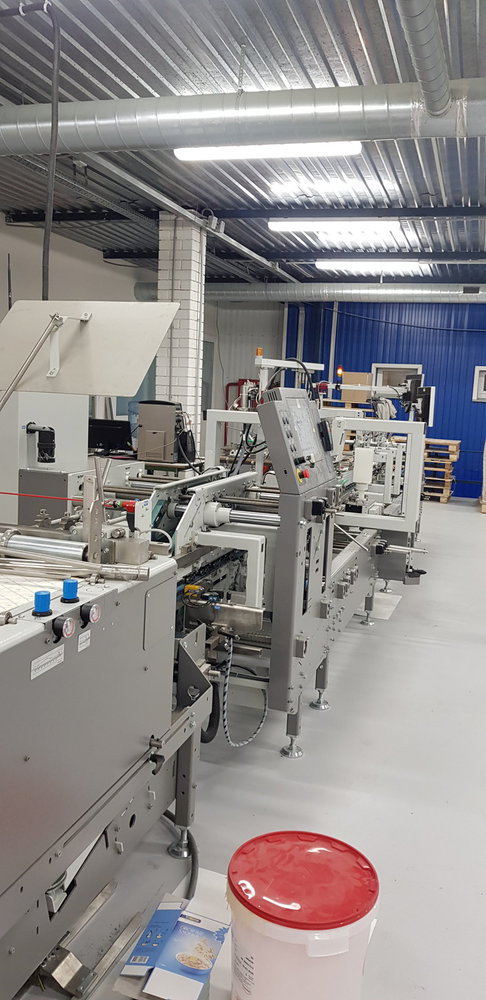

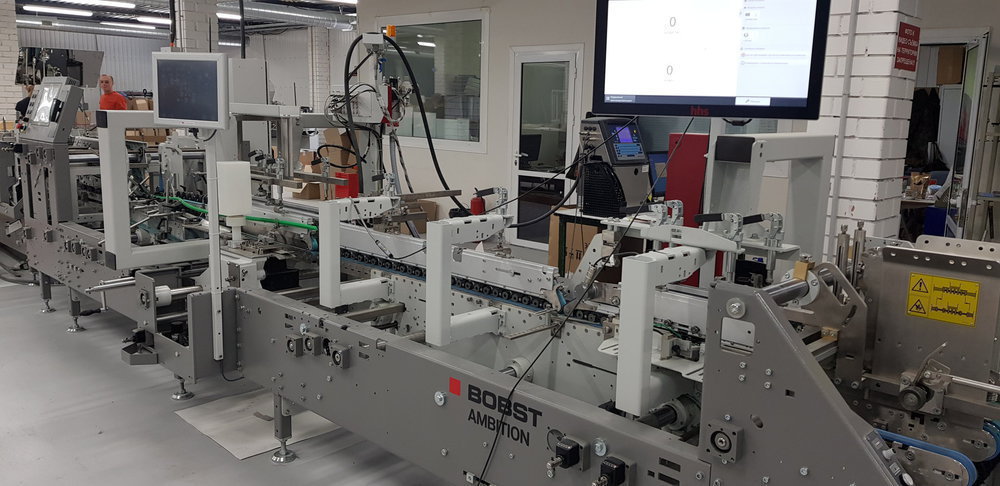

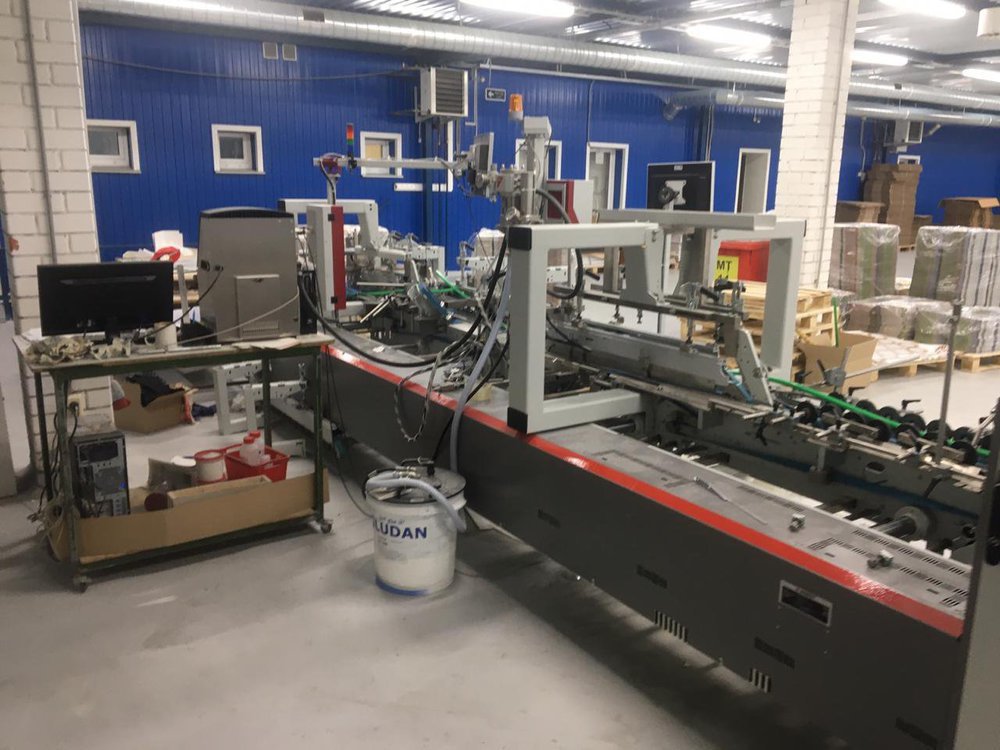

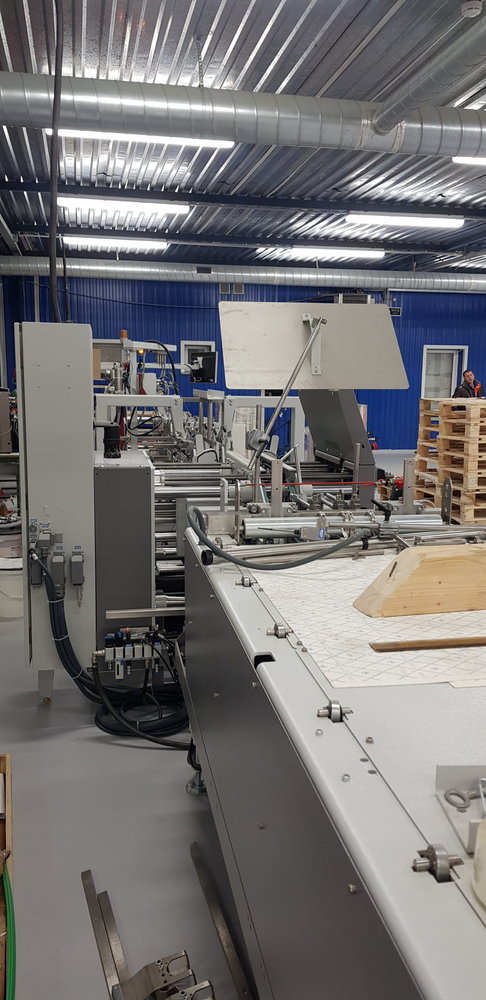

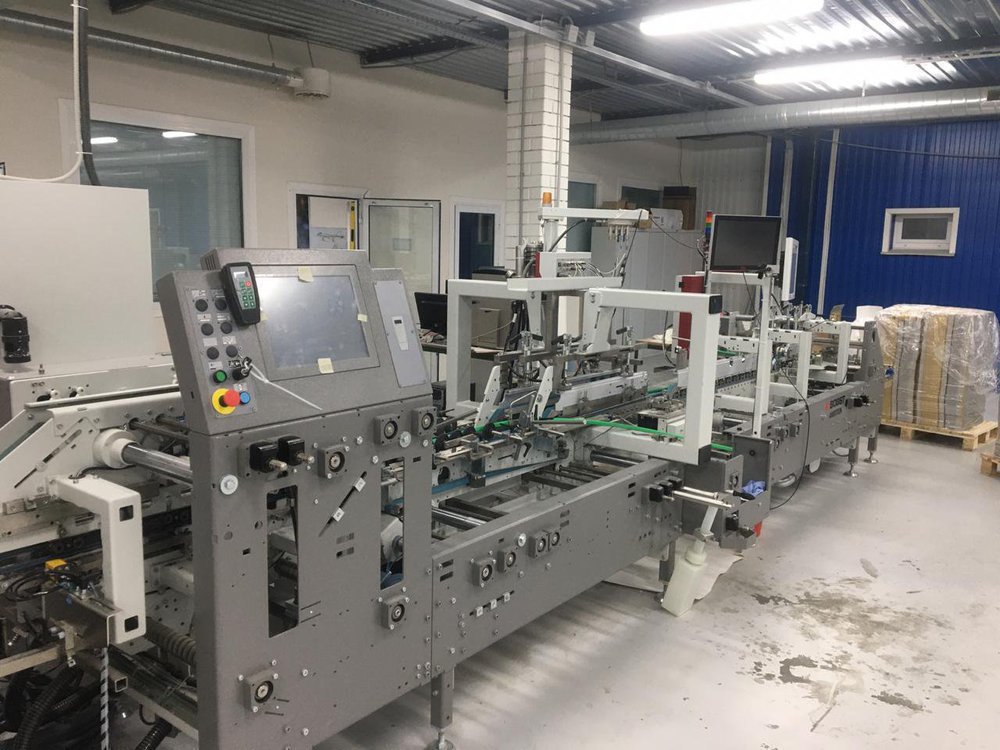

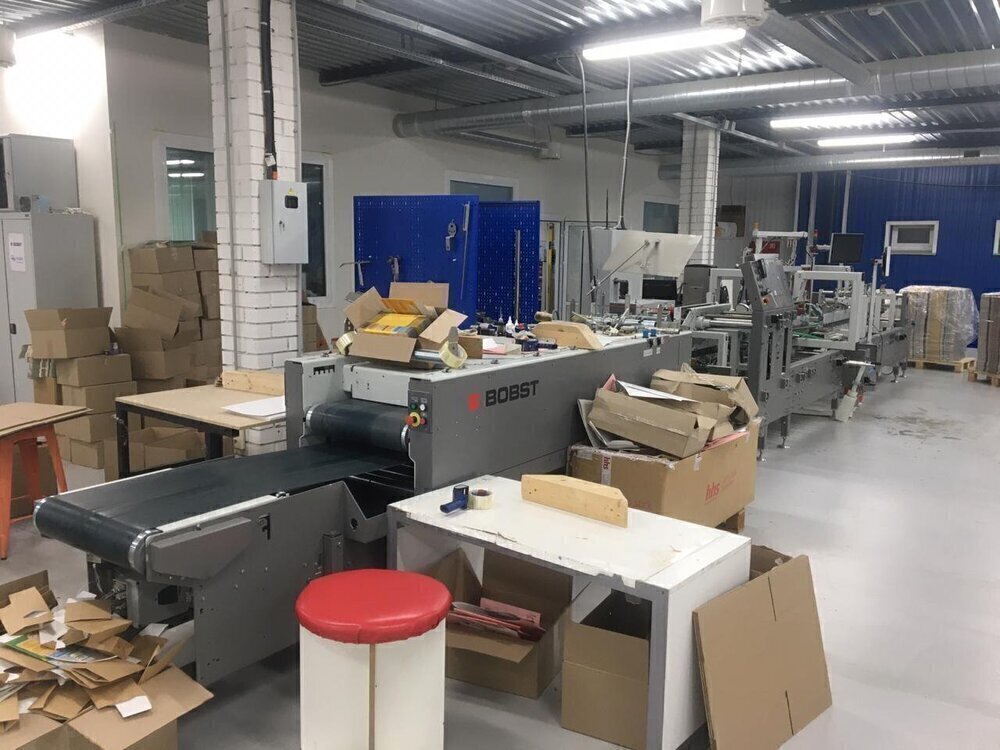

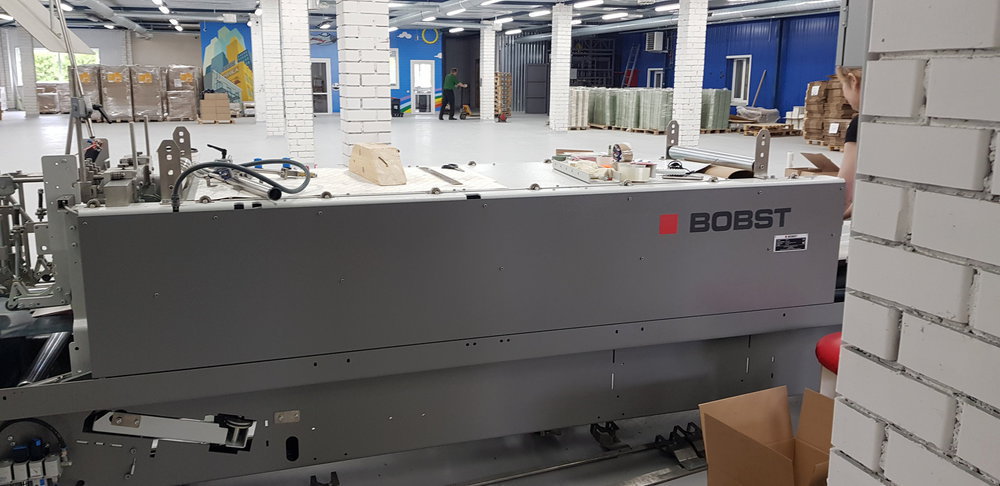

BOBST AMBITION 76 A1 from 2020
Folder Gluer
Offer Details
| Offer Number: | 351238 |
|---|---|
| Brand: | BOBST |
| Model: | Ambition 76 A1 |
| Manufacturer | BOBST |
| Condition: | Very good |
| Year: | 2020 |
| Incoterm: | Free Carrier |
| Cylinders Condition: | |
| Under Power: | No |
| Still in production: | No |
| Test possible: | No |
| Complete and in working condition: | Yes |
| Availability: | Immediately |
| Counter: | |
| Machine number: | |

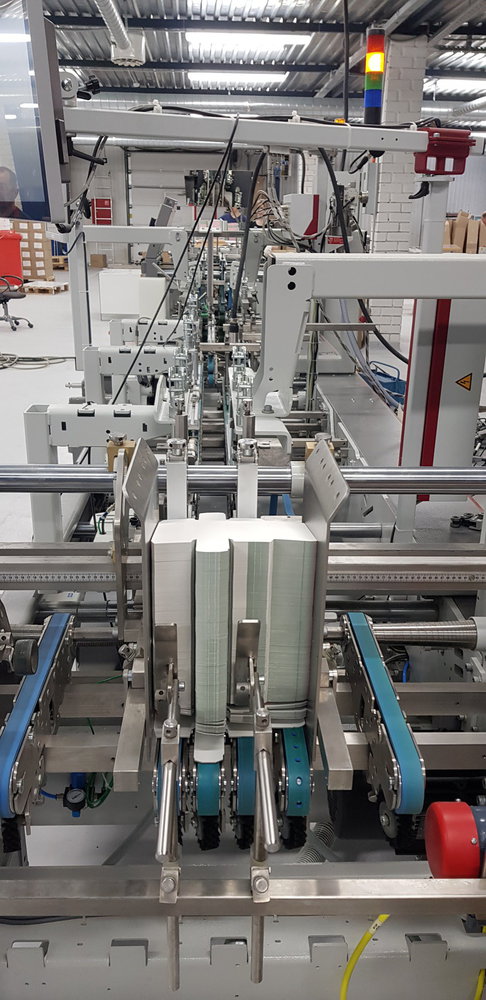

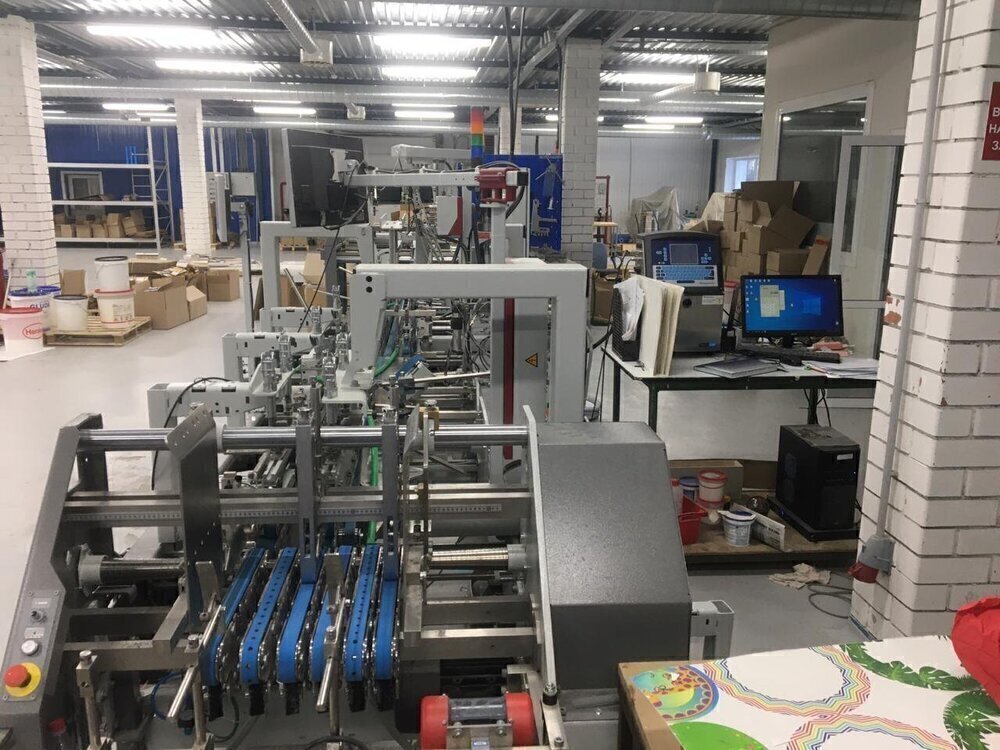

| Description: | CUBE adjusting systemCarton board: max 800 g/m2Corrugated flute type: N, E, FSpeed: 20 to 300 m/minInching speed: 20 m/minBox sizes:Straight line "C": 126 to 760 mmStraight line "E": 60 to 800 mmStraight line "L": 60 to 385Crash-lock bottom "C" (2): 146 to 760 mmCrash-lock bottom "L": 70 to 385 mmFEEDER Total length: 610 mm6 Feed conveyors with 30 mm wide belt with 4 built-in mechanical vibrators1 Thickness gauge with lateral and lengthwise setting and upper introduction rollers 1 Additional thickness gauge with lateral and lengthwise setting and upper introduction rollers2 Side guides in two parts Asymmetrical and adjustable in length Max. pile height: 350 mm. 1 set of rear guides for blank support 1 Motor controlled by frequency variator to drive the feed belts and to put in or out of operation PREBREAKER SECTION total length: 2300 mm. 1 lower left conveyor with 43 mm wide belt1 Lower right conveyor with 25 mm wide belt1 Set of upper conveyors with 25 mm wide belts and lifting device1 Left-hand prebreaker without belt with built-in pressing deviceAdjustable through eccentricMax. width of the glue flap: 30 mm1 Reopening guide1 Right-hand prebreaker with 30 mm belt width Including a system to set the prebreaking angle1 Lower central supporting guideGLUING UNIT1 Lower left-hand gluing unit with wheel and double scraper1 HHS gluing system with 2 nozzles, upgradeable up to 41 Removable glue basin1 Upper guide with pressure roller1 Refill bottleAdditional options installed (with factory no.): A-012 Delivery, extended versionB-012 Device for CRASH-LOCK BOTTOM boxes without prebreaking of 3rd creaseB-060 Device for sleeves and envelopesEA-015 Electric pile vibratorFor the rear pile guides. Improves the feeding of blanks which are sticking to each otherEA-025 Blank suction deviceEA-030 Rotary brushesF-020 Long upper right conveyor outletG-001 Minimum folding deviceG-015 Central conveyorsJ-001 Infeed device left and right Infeed device with 30 mm belt widthJ-010 Upper pressure beltJ-014 Additional upper pressing beltDX-027 Glue application system without possibility of quality assurance (maximum machine speed 300 m/min)K-012 Flipper ejectorKX-012 Code reader "Stand-Alone"Xtend series Baumerhhs (maximum machine speed 700 m/min)DismantledIn stock |
Technical details
| Max. blank width | 760 mm |
|---|---|
| Min. blank width | 126 mm |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request
