Offer 381854

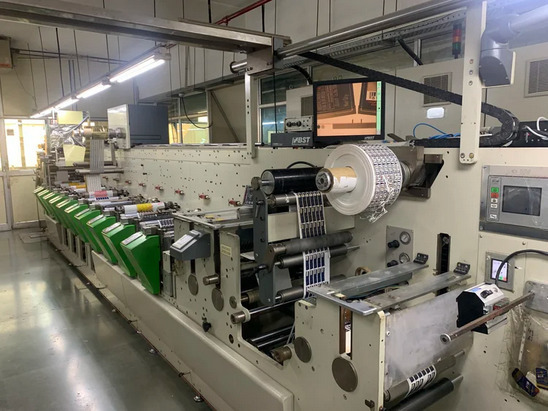

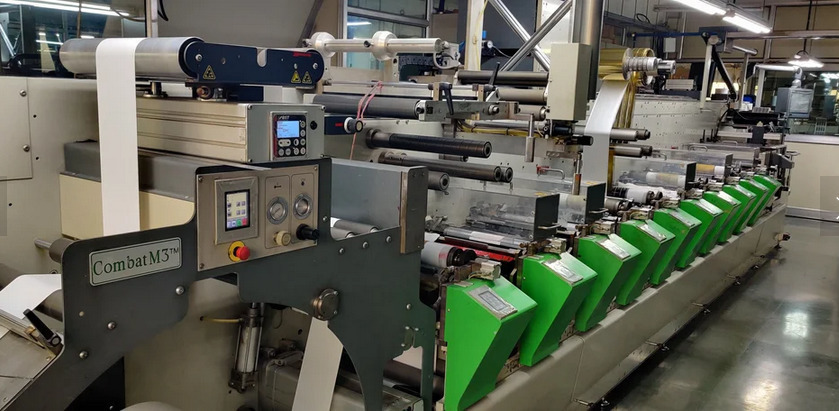

BOBST COMBAT M3 from 2013
Packing Machines
Offer Details
| Offer Number: | 381854 |
|---|---|
| Brand: | BOBST |
| Model: | Combat M3 |
| Manufacturer | BOBST |
| Condition: | Good |
| Year: | 2013 |
| Incoterm: | EX Works |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |
| Description: | Pre-register, auto register<>Matrix rewind, snowball, de-lam & re-lam, turnbar, cold foil kit<>GEW E2C UV system<>15 inks tray + meter roll + doctor blade assembly + trolley<>Organiser with crane for mounting magnetic cylinder<>Variety of print cylinder, magnetic cylinders, anilox are available<>Machine Description:<>Temperature control for un-limited substrates<>Includes:<>Front load unwinder with motorized roll lifting with Light™: servo driven unwind shaft<>Max Unwind reel diameter: 1000mm<>Web Guide: BST Automatic Web Guide<>Video Inspection: BST Powerscope Video inspection with manual camera movement<>1 x Infeed unit: Vario™ - Servo driven infeed (includes active load cell)<>2 x Die-cutting stations (male-female die-cutting possible) - servo motorized<> - Servo driven die-cutting units (1 servo motor per unit)<> - Length register for die cutting unit<>1 x Crush cutting slitting system including 3 blades<>1 x Back slitting unit for silicon paper (half cut) includes 2 crush knives<>1 x Outfeed Unit: Vario™ - Servo driven outfeed (includes active load cell)<>1 x Organiser (includes crane to remove and store die-cutting tools)<>3 x Web break detectors (2 for main web, 1 for matrix web)<>3 x Antistatic bars<>1 x Motorised rewinder<>Max Rewind Diameter: 1000mm<>1 x Motorised lateral register adjustment<>Bobst Firenze mark-to-cylinder ARC register control<>Automatic pre-register<>Second pass register control<>Touch screen panel on each printing and die-cutting station<>Main touch screen panel (PC HMI)<>Direct Internet Connection for remote SW and HW service and upgrades<>Flexo Printing Unit Description<>(1 servo motor for print cylinder, 1 servo motor for impression roller and ink train)<>Includes:<>Belt driven chilling drum<>Servo Flower™ flexographic heads, with 2 servo motors<>Short Web Path<>Plexiglass cover for each printing unit<>Photocells for Bobst Firenze mark-to-cylinder register control<>Motorized lateral register adjustment<>Sensor for automatic pre-register<>New E2C E-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch screen panel)<>Accessories Kit (which includes):<>Printing accessories<>- 1 set of rubber rollers per color + 5 additional pcs.<> - 1 set of inktrays per color + 5 additional pcs.<> - 1 set of doctorblade holders per color + 5 additional pcs.<>1 x SnowBall<>1 x Rail system for accessories<>1 x Upper rail on the printing units<>1 x Lamination and cold foil<>1 x Combo laminator (unwinder and rewinder) and Cold Foil kit on rail<>1 x Kelva CWC-S single side (contact cleaner) |
Technical details
| Web width: | 430 mm |
|---|---|
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request
Images
