BOBST

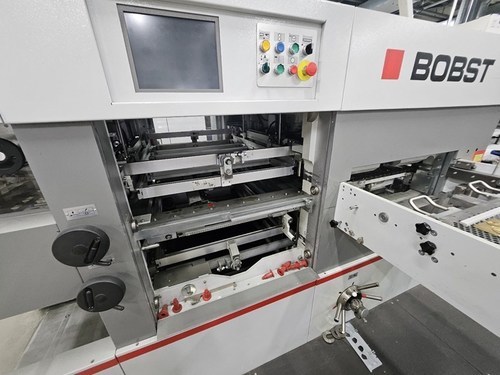

Offer 379744, a BOBST NOVACUT 106-E from 2013

Available

Die-cutter (flatbed) · from 2013 · Offer 379744

Specification

Offer number
379744
Manufacturer
BOBST
Model
Novacut 106-E
Year
2013
Counter
In production
Yes
Description
OS AND OOS SIDE GUIDES<>QUICK LOCKING DEVICE OF THE CENTRAL STRIPPING BOARD ON WASTE STRIPPING STATION<>NON-STOP DELIVERY WITH GRILL<>1 CUTTING PLATE (T-120.001) THICKNESS 5 MM,<>1 UPPER STRIPPING PULL-OUT FRAME<>1 LOWER STRIPPING PULL-OUT FRAME PULL GUIDE (OOS) WITH SIDE REGISTER CONTROL<>1 PUSH GUIDE (OOS) WITHOUT MECHANICAL STOP (OS)<>SET OF PARTS FOR CHANGING A (OOS) 'PULL' GUIDE INTO A 'PUSH' GUIDE<>MICRO ADJUSTMENT FOR 1 MM PLATES<>1 COMPENSATING PLATE THICKNESS 4 MM<>1UPPER STRIPPING PULL-OUT FRAME WITH QUICK LOCK<>1 UPPER CHASE WITH FIXED BOTTOM PLATE AND QUICK LOCK
Technical details
Sheet size max
740x1060 mm (29.125x41.75 in)
Sheet size min.
350x400 mm (13.75x15.75 in)
Embossing size max.
710x1060 mm
Stamping size max.
725x1060 mm
Gripper margin
9 to 17 mm
Height of cutting rules
23.8 mm
Platen pressure max.
2.6 MN (286 US tons)
Production speed
7000 sheets/h.
Pile height (normal feeder)
1400 mm (800 mm)
Hs code
84439959 HS Codes Classification of Other
Offer details
Condition
Good
Country
Europe
Incoterm
EX Works
Under power
Yes
Still in production
Yes
Test possible
Yes
Complete and in working condition
Yes
