| Description: |

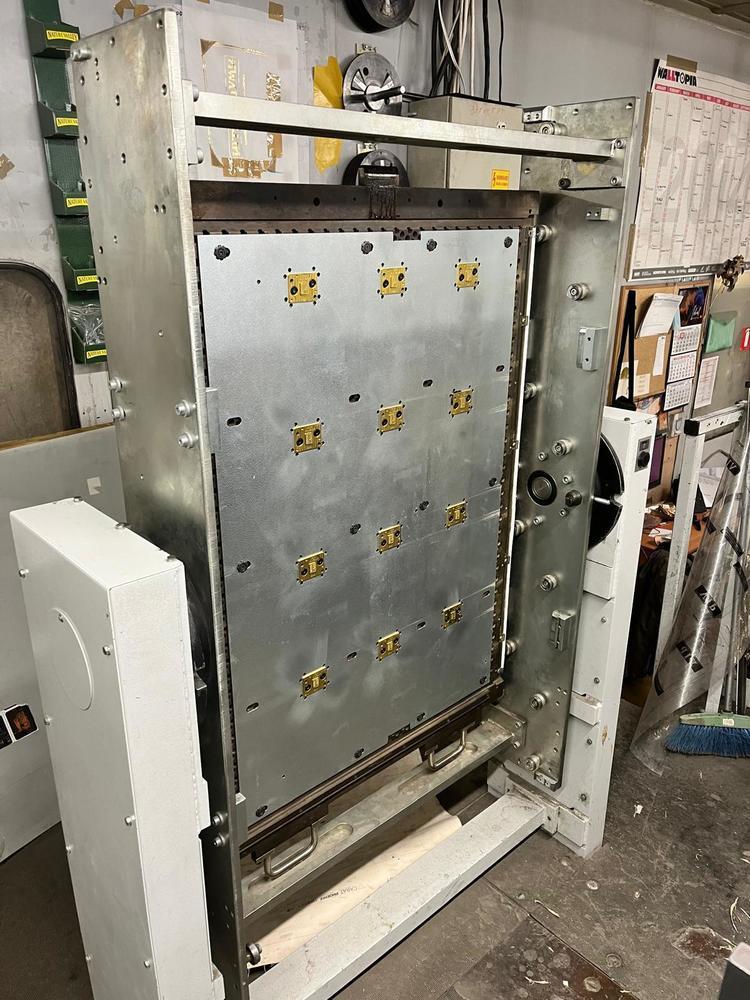

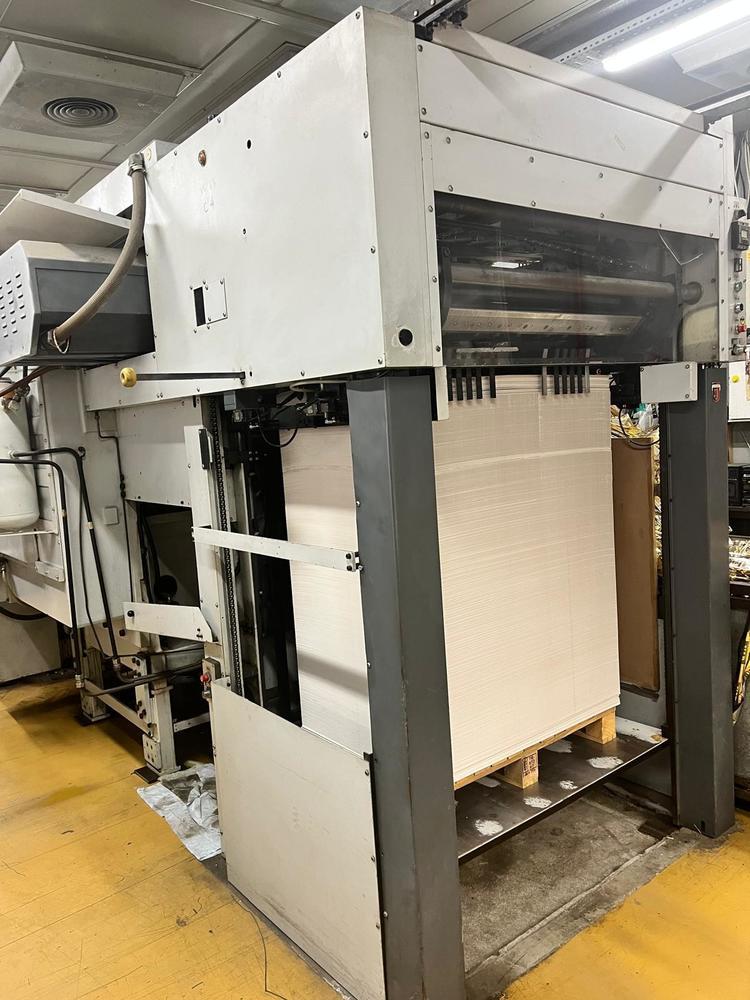

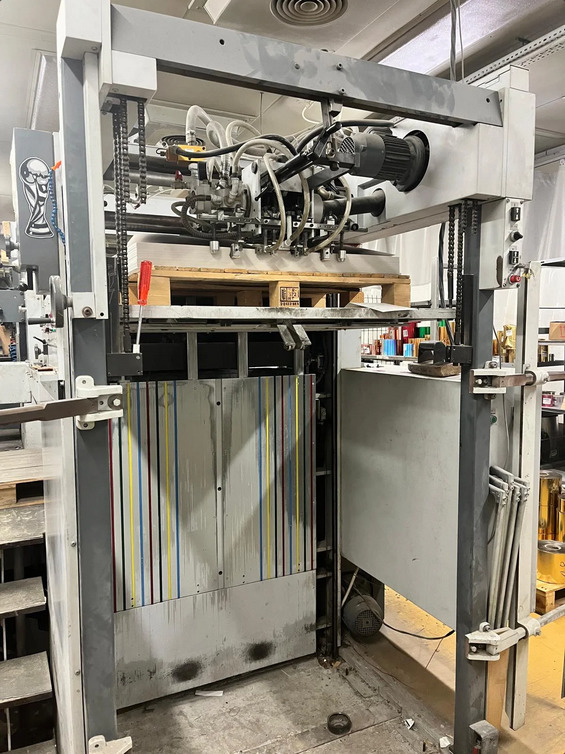

* overhauled in 2009<>FEEDER<>Universal non-stop feeder<>In line pile preparation<>Suction unit with multiple adjustments<>FEED TABLE<>4 Front lays, adjustable in pairs with front register control<>Pull guide (OS) Transport belts<>PLATEN<>Heated upper head with 16 independent heating zones<>Steel stamping supporting plate<>Thickness: 21.5 mm<>2 x Honeycomb chase (E-6) for 6,35 or 7 mm dies<>2 x Stamping plate, BM (E-62)<>Thickness: 2,3 mm<>Compensating plate, BM (E-52)<>Thickness: 3,0 mm<>Lateral guiding device for foil<>Motorized foil tension shaft control with air cooling<>Automatic "on and off' pressure device of the platen<>Blower for stabilizing the sheet before stamping or converting<>Blower for releasing the foil after stampingDevice for manual introduction of foil<>Lateral foil removal system, combined with rotating brushes, with speed modulation in function with foil advance<>Device for lengthwise slitting of foil<>Foil break control system for 16 foils<>Removable foil supply module comprising<>3 x individual motor-driven advance regulating shafts<>2 x telescopic sliding rails for reel-holders<>2 x reel-holder axles<>2 x additional reel-holder used for off-machine preparation<>3 x sets of 8 reel-holder levers with combinable I" and 3" hubs, including:<>1 set for narrow reels, 1 set for mid-sized reels, 1 set for large reel<>15 narrow drive rollers, width 14 mm<>15 wide drive rollers, width 38 mm<>1 movable stand (OOS) for the installation or removal of the BMA device.<>DELIVERY<>Pile tray<>Adjustable rear and side jogger. Manual non-stop rack<>Options added:<>Die cutting chase E-1<>Compensating plate E-3<>Micrometric adjusting plate E-55<>Set of thin cutting plates E-98 Compatible with SP 102 Evoline<>Technical data<>CONVERTIBLE STOCK<>Minimum paper range: 80 - 90 g/sqm<>Maximum cardboard range: 2000 g/sqm<>Maximum corrugated board thickness: 4 mm<>PILE HEIGHT<>Maximum height feeder(normal mode): 1820 mm<>Maximum height feeder(with pile preparation device): 1710 mm<>Maximum height Feeder(non-stop): 1660 mm<>Maximum height Feeder(with pile preparation device non-stop): 1550 mm<>Maximum height Delivery: 1460 mm<>Gripper margin: 9 - 17 mm<>Height of embossing dies: 6,35 / 7 mm<>Height of cutting rules: 23,8 mm<>PLATEN TEMPERATURE<>Adjustable temperature: 50 - 160 °C<>16 x adjustable temperature zones<>FOIL SUPPLY MODULE<>Maximum reel diameter: 250 mm<>Foil web width: 25- 1010 mm<>3 x advance shafts<>Maximum programmable advance: 720 mm |
