Offer 382111

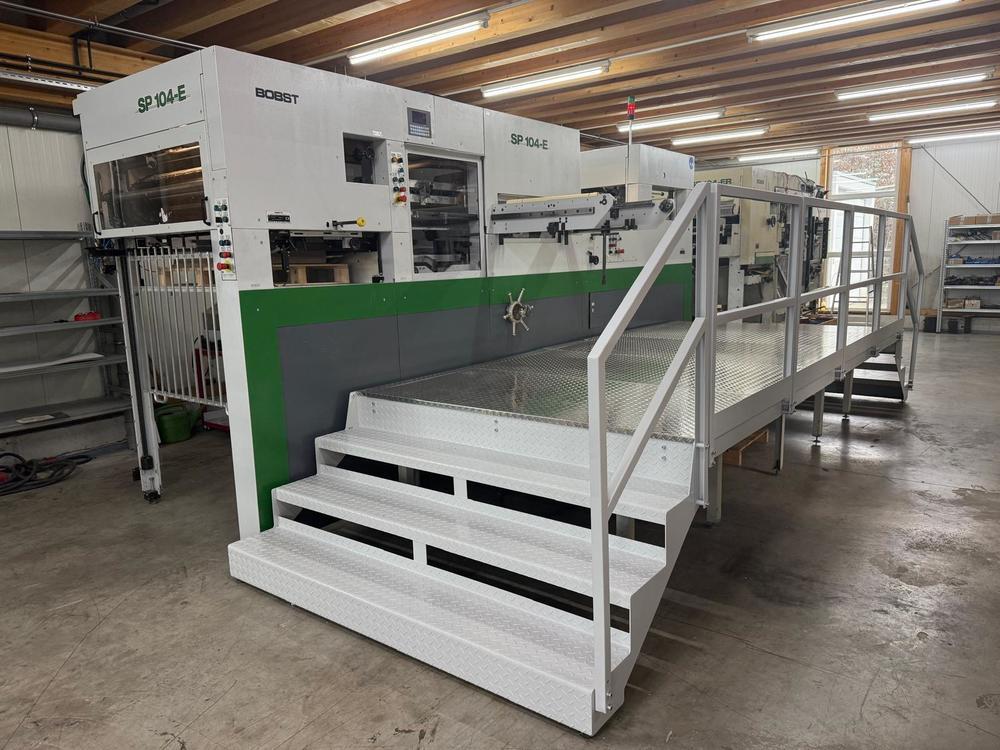

BOBST SP 104-E from 2002
Die Cutter (Flatbed)
Offer Details
| Offer Number: | 382111 |
|---|---|
| Brand: | BOBST |
| Model: | SP 104-E |
| Manufacturer | BOBST |
| Condition: | Good |
| Year: | 2002 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | |
| Counter: | |
| Machine number: | |
| Description: | centerline, <>pull mark left, <>push mark right, <>gripper edge separation, <>41cm elevated,<>Bobst-Cube control, <>micrometer adjustment, <>electric double sheet control,<>1 upper die cutting frame,<>1 die cutting plate 4 mm, <>1 upper stripping frame, <>1 lower stripping frame,<> max. machine speed 7000 sheets/hour, <>max. pressure 250 tons, <>processable materials: paper min. 80g/m², <>cardboard up to max. 2000g/m², <>corrugated cardboard up to 4mm<>Stripping station<>Non-stop in feeder + delivery<>Repainted |
Technical details
| Sheet size max | 1040x740 mm |
|---|---|
| Sheet size min. | 400x350 mm |
| Gripper margin | 1.040+740 mm |
| Platen pressure max. | 250 t |
| Production speed | 8500 cycles/h. |
| Mechanical speed | 8500 sheets/h. |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request
