Offer 373031

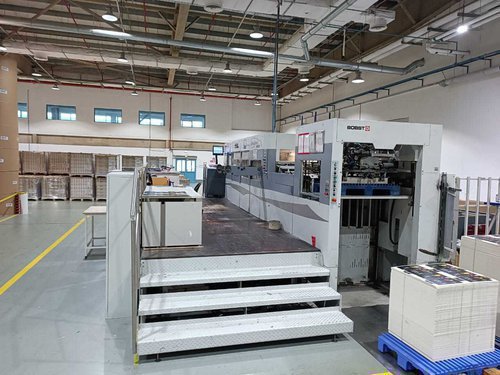

BOBST SPANTHERA 106 LER from 2007
Die Cutter (Flatbed)
Offer Details
| Offer Number: | 373031 |
|---|---|
| Brand: | BOBST |
| Model: | Spanthera 106 LER |
| Manufacturer | BOBST |
| Condition: | Good |
| Year: | 2007 |
| Incoterm: | |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | Immediately |
| Counter: | |
| Machine number: | |
| Description: | Automatic Die Cutter with strippping and BlankingMicro metric adjustmentAutomatic equipment centering, locking for chase and supporting plate, ensuring perfect quality achievement of cutting and creasing1 x upper striping frame with accessorieStripping Unit with 2x upper chases and 2x lower chasesIntegrated quick-lock system ensuring fast and easy job changeoversLeft hand side register pull laysCUBE (central unit bobst electronics)Stripping sectionCenterline micrometric adjustmentC.U.B.E. Bobst-Electronic machine operating systemPull guide (OS) with Double Sheet Detector1 x Lower stripping frame with some accessories |
Technical details
| Sheet size max | 1060x760 mm |
|---|---|
| Sheet size min. | 400x350 mm |
| Embossing size max. | 740x1060 mm |
| Gripper margin | 9 to 17 mm |
| Height of cutting rules | 23.8 mm |
| Platen pressure max. | 2.6 MN |
| Production speed | 9000 sheets/h. |
| Space required | 8.70x5.90x2.80 m |
| Weight approx. | 22 tons |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request
