Offer 379542

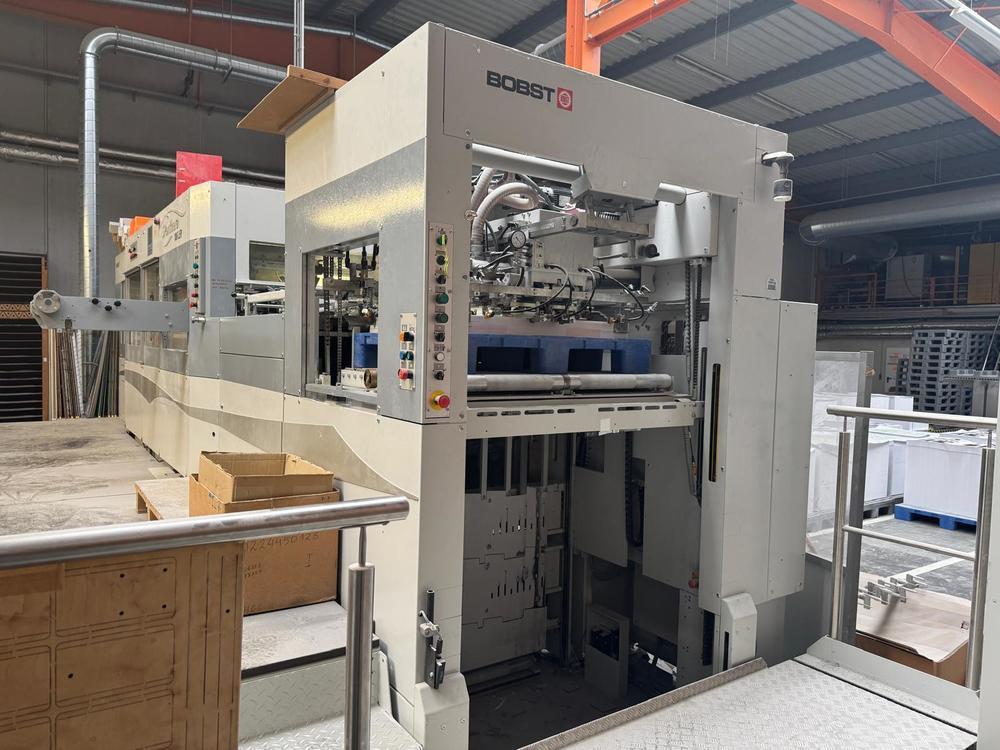

BOBST SPANTHERA 106 LER from 2007
Die Cutter (Flatbed)
Offer Details
| Offer Number: | 379542 |
|---|---|
| Brand: | BOBST |

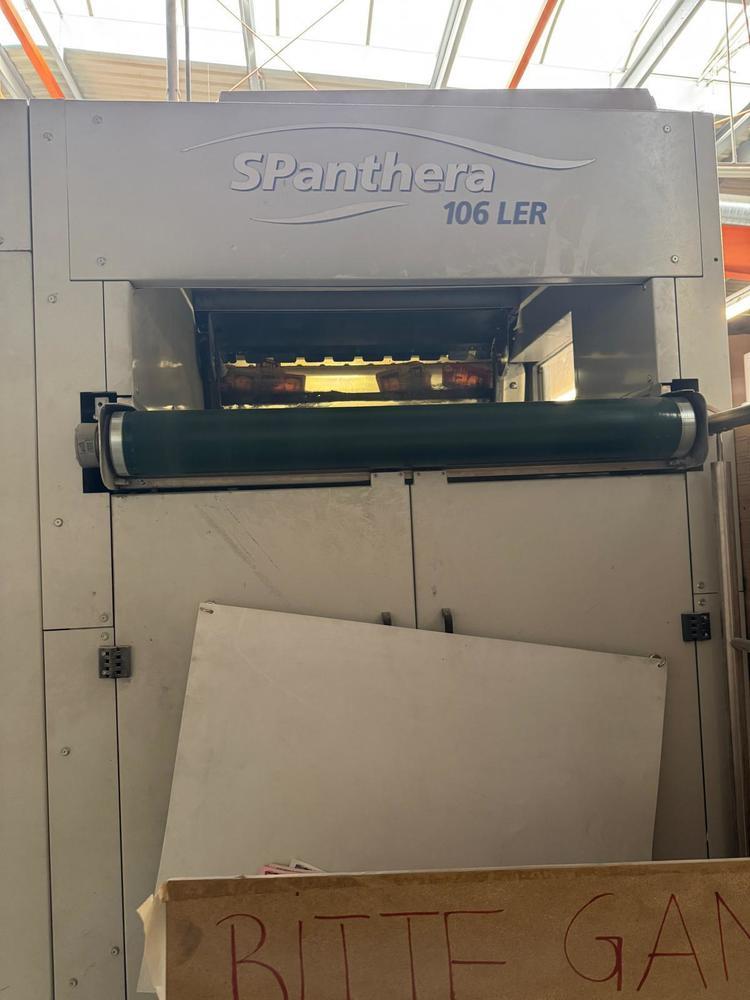

| Model: | Spanthera 106 LER |
| Manufacturer | BOBST |
| Condition: | Good |
| Year: | 2007 |
| Incoterm: | Free Carrier |
| Cylinders Condition: | |
| Under Power: | Yes |
| Still in production: | Yes |
| Test possible: | Yes |
| Complete and in working condition: | Yes |
| Availability: | 04/2026 |
| Counter: | |
| Machine number: | |

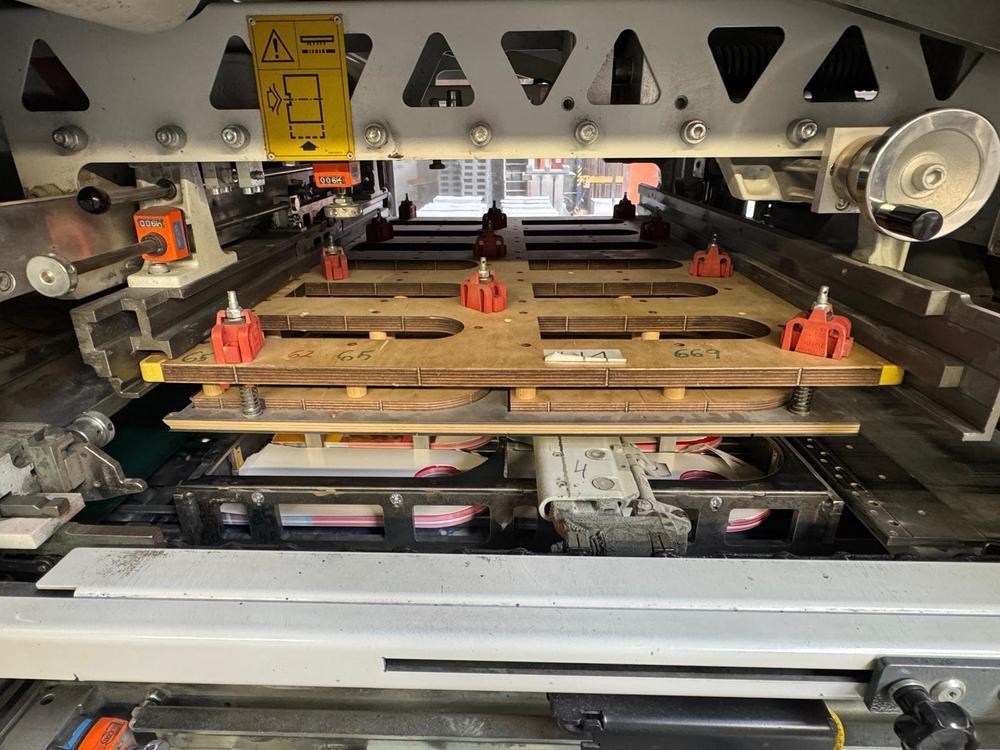

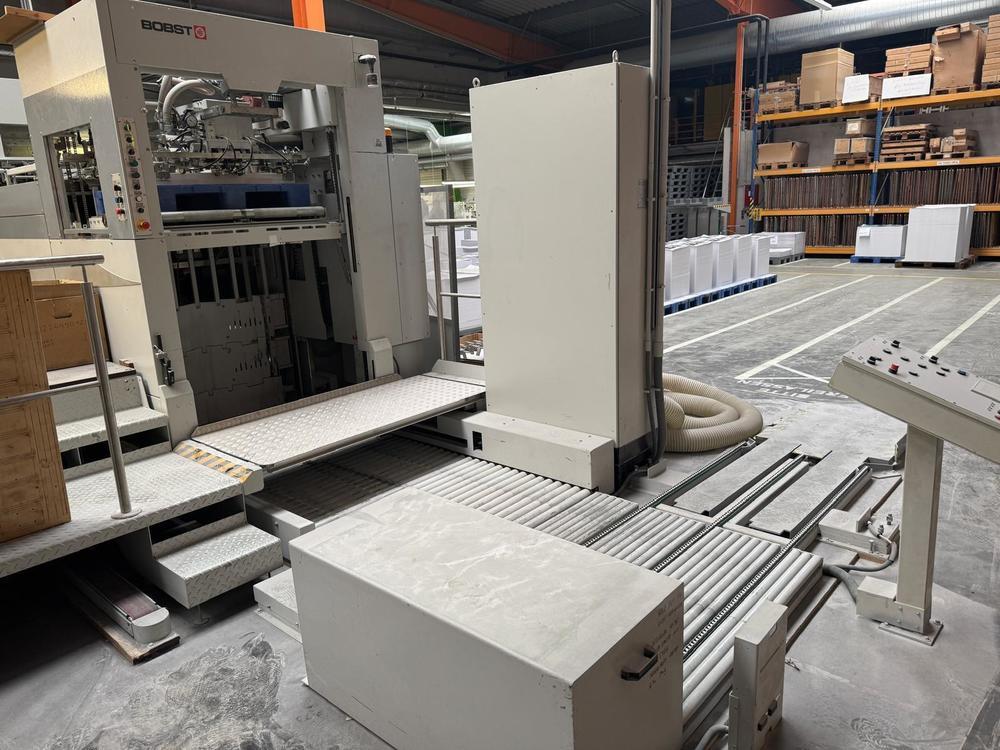

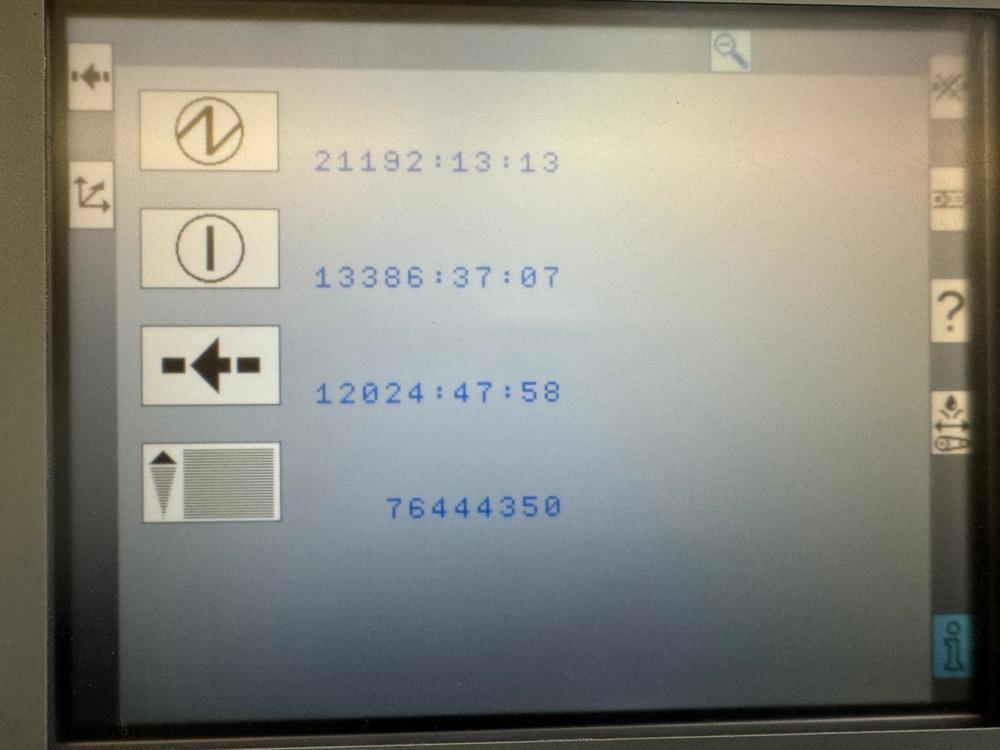

| Description: | Logistic in feeder & delivery<>Autoplaten with double action stripper & blanker<>Device for run paper in high speed<>Special APT (automatic transport paper system)<>APT in feeder / nostop device<>Upper pull-out frame<>Lower pull-out frame<>Sheet brake device “Bernoulli”-System in stripper<>Sheet brake device “Bernoulli”-System in delivery<>Position control device for upper tools<>Additional “CUBE” screen<>Platform extension with catwalk<>Double sheet control with contact<>Upper stripping equipment<>Lower stripping equipment<>Automatic device to open the grippers in the stripping station<>non-stop rake<>Non-Stop delivery with automatic pallet changer (Standard)<>For the process of die cutting, creasing, cold embossing, etc., incl. automatic stripping and blanking<>Sheet size: 740 x 1,060 mm, min. 400 x 350 mm<>Operating size: With front trim, max. 1,060 x 746 mm, without trim 1,060 x 730 mm<>Paper: min. 70 g/m² (depending on quality)<>Solid board up to 1,000 g/m² (depending on quality)<>Corrugated board up to 4 mm<>Production: Up to 9,000 sheets/h<>Punch strength max. 2.6 MN<>Hours approx: 13.000 |
Technical details
| Sheet size max | 1060x760 mm |
|---|---|
| Sheet size min. | 400x350 mm |
| Embossing size max. | 740x1060 mm |
| Gripper margin | 9 to 17 mm |
| Height of cutting rules | 23.8 mm |
| Platen pressure max. | 2.6 MN |
| Production speed | 9000 sheets/h. |
| Space required | 8.70x5.90x2.80 m |
| Weight approx. | 22 tons |
| HS Code | 84439959 HS Codes Classification of Other |
PRICE: Upon request
Images
