Offer 360247
DUERSELEN PB 09 from 1997
Paper Drilling Machines
Offer Details
| Offer Number: | 360247 |
|---|---|
| Brand: | DUERSELEN |
| Model: | PB 09 |
| Manufacturer | DUERSELEN |
| Condition: | Good |
| Year: | 1997 |
| Incoterm: | Free Carrier |
| Cylinders Condition: | |
| Under Power: | No |
| Still in production: | No |
| Test possible: | No |
| Complete and in working condition: | Yes |
| Availability: | Immediately |
| Counter: | |

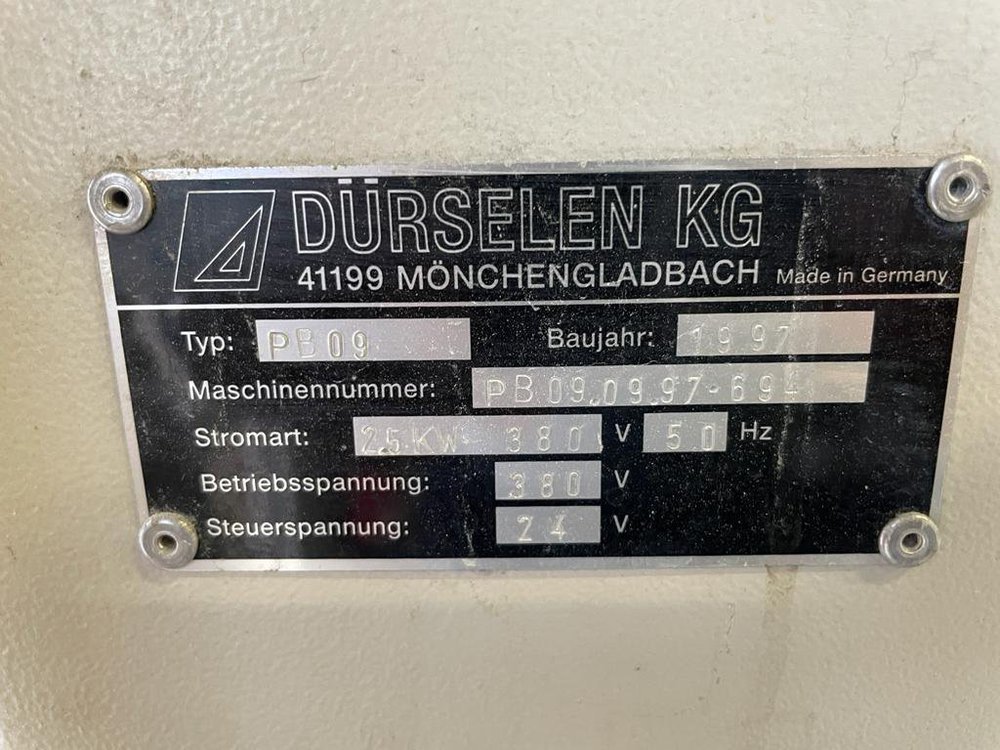

| Machine number: | |

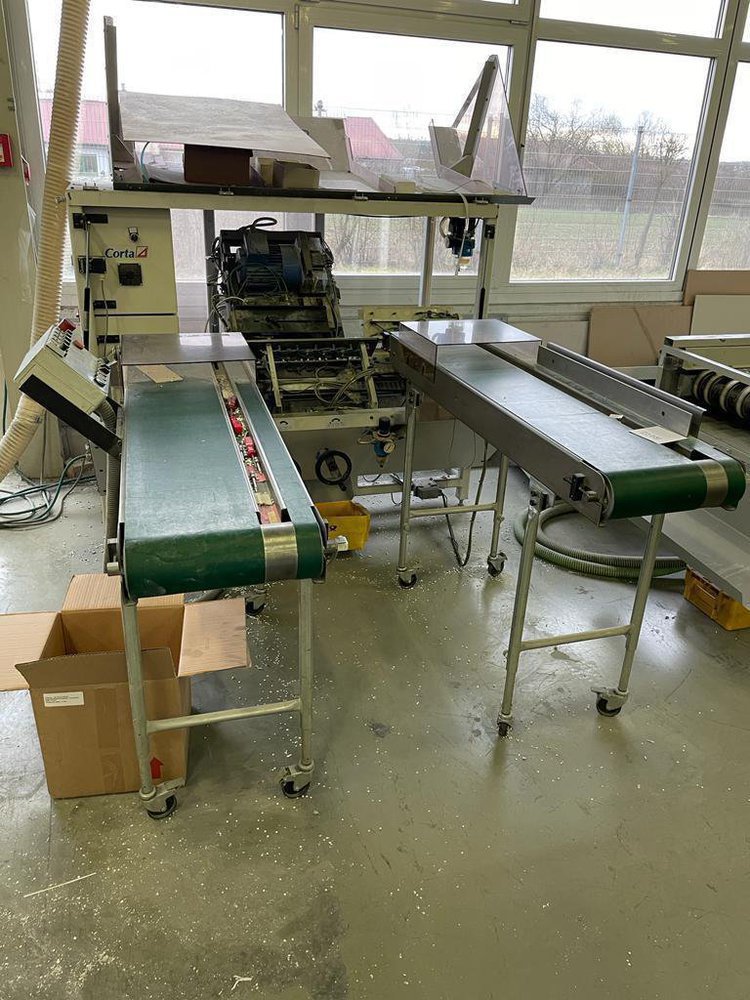

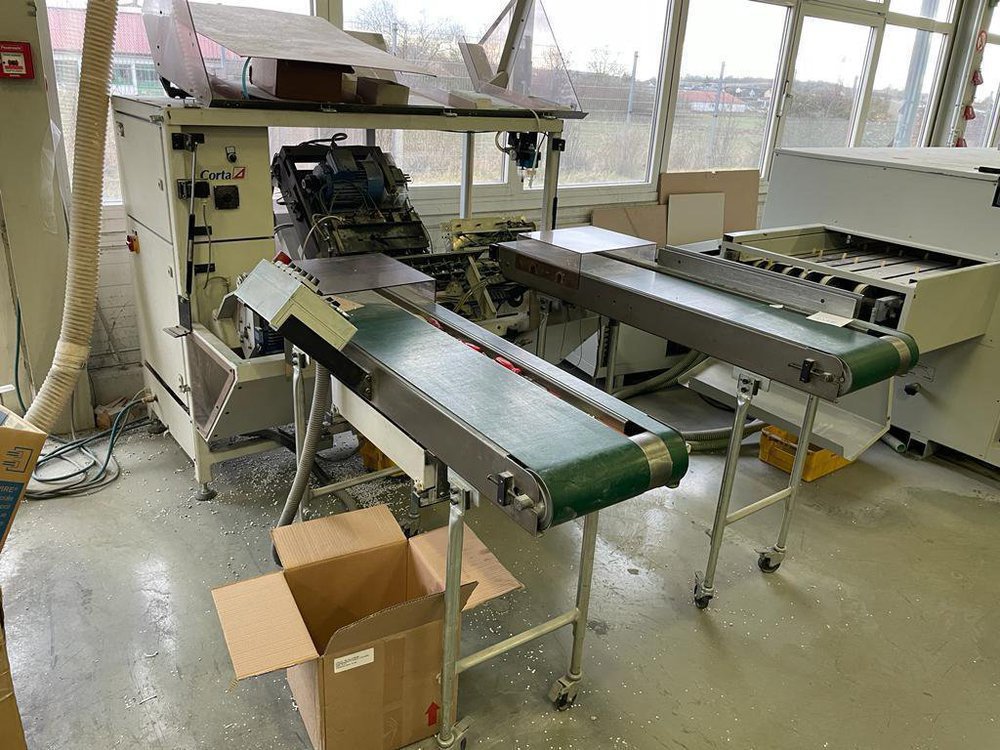

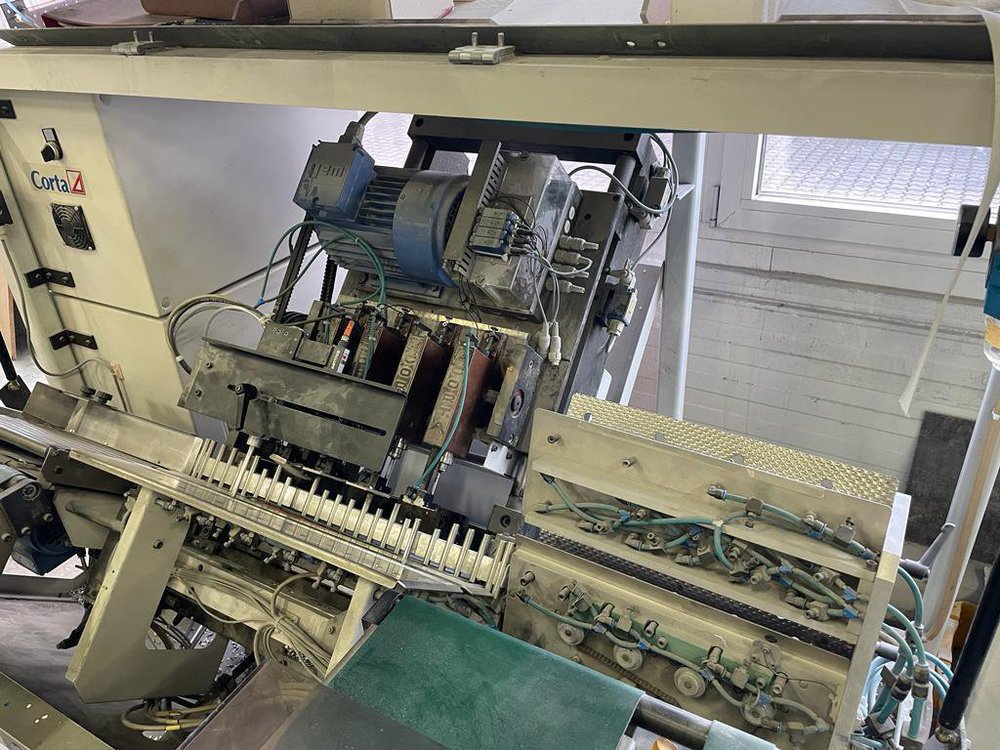

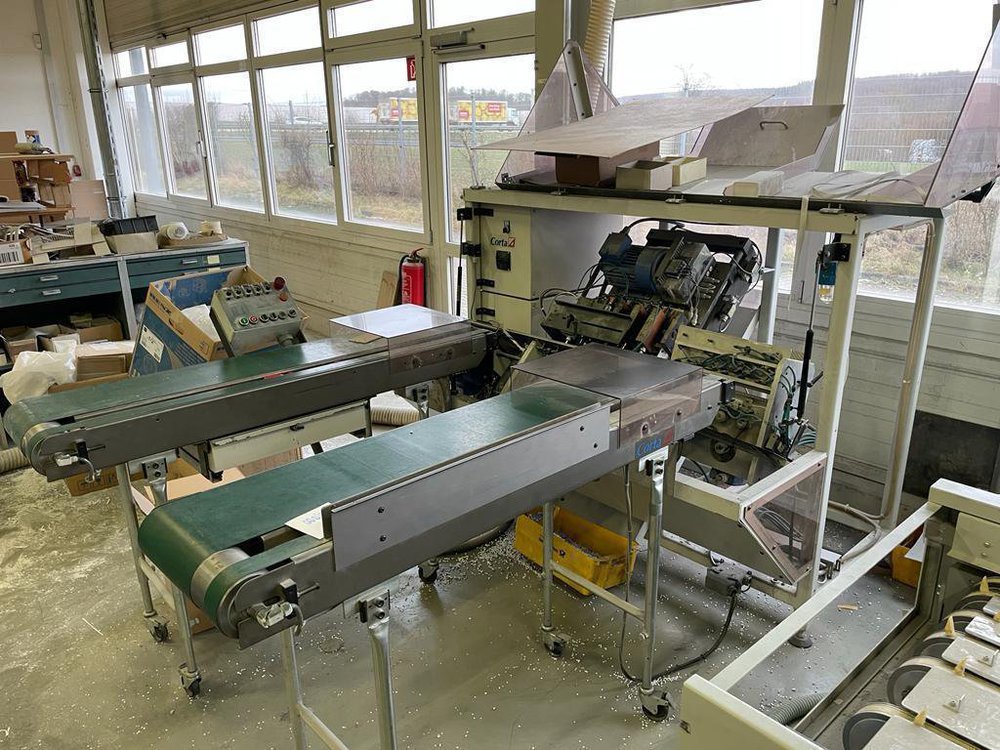

| Description: | 4 Head Fully Automatic Paper Drilling Machine <>To drill books queued, stapled magazines, such as stacks of flyers <>Size max: 310 x 220 mm <>Size min: 145 x 105 mm <>Drill heads: 4 (up to 11 possible) <>Drill diameter: 3 - 14 mm <>Hole distance: 31,7 - 310 mm <>Edge distance: 5 - 20 mm <>Stack heigth: max. 50 mm <>Drill speed: 400 - 2.700 Rpm <>Lifting speed: 2 - 34 strokes / min <>Capacity: 1.200 stacks / h <>Equipment : Drill cooling & lubrication <>Variable lifting speed |
Technical details
| Power supply | 230/400Volt, 3Phasen, 50Hz |
|---|---|
| Max. size | 310x220 mm |
| Min. size | 145x105 mm |
| Speed | to 1.200 / h |
| Stack height | 50 mm |
| Drilling diameter | 3 |
| Drilling distance | 31,7 |
| Dimensions | 1700x2500m (with transportation belts) |
PRICE: Upon request
Images
