Offer Number |
368217 |
Manufacturer |
IMS |
Model |
RU1 |
Year |
2013 |
Availability |
Upon agreement |
Counter |
|
In Production |
Yes |
Upon Request
Description

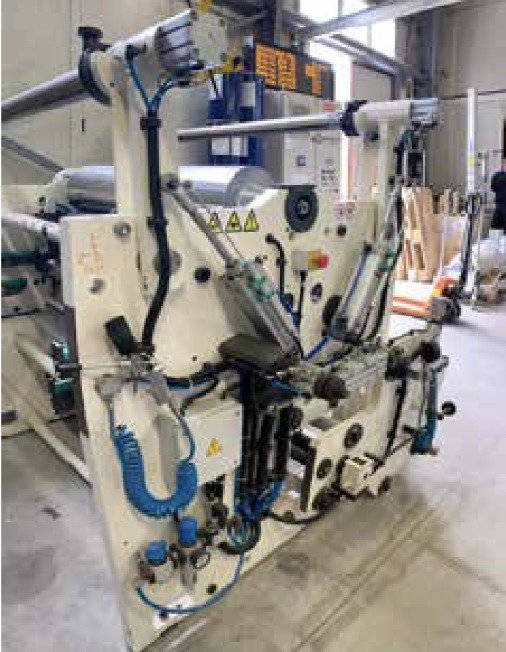

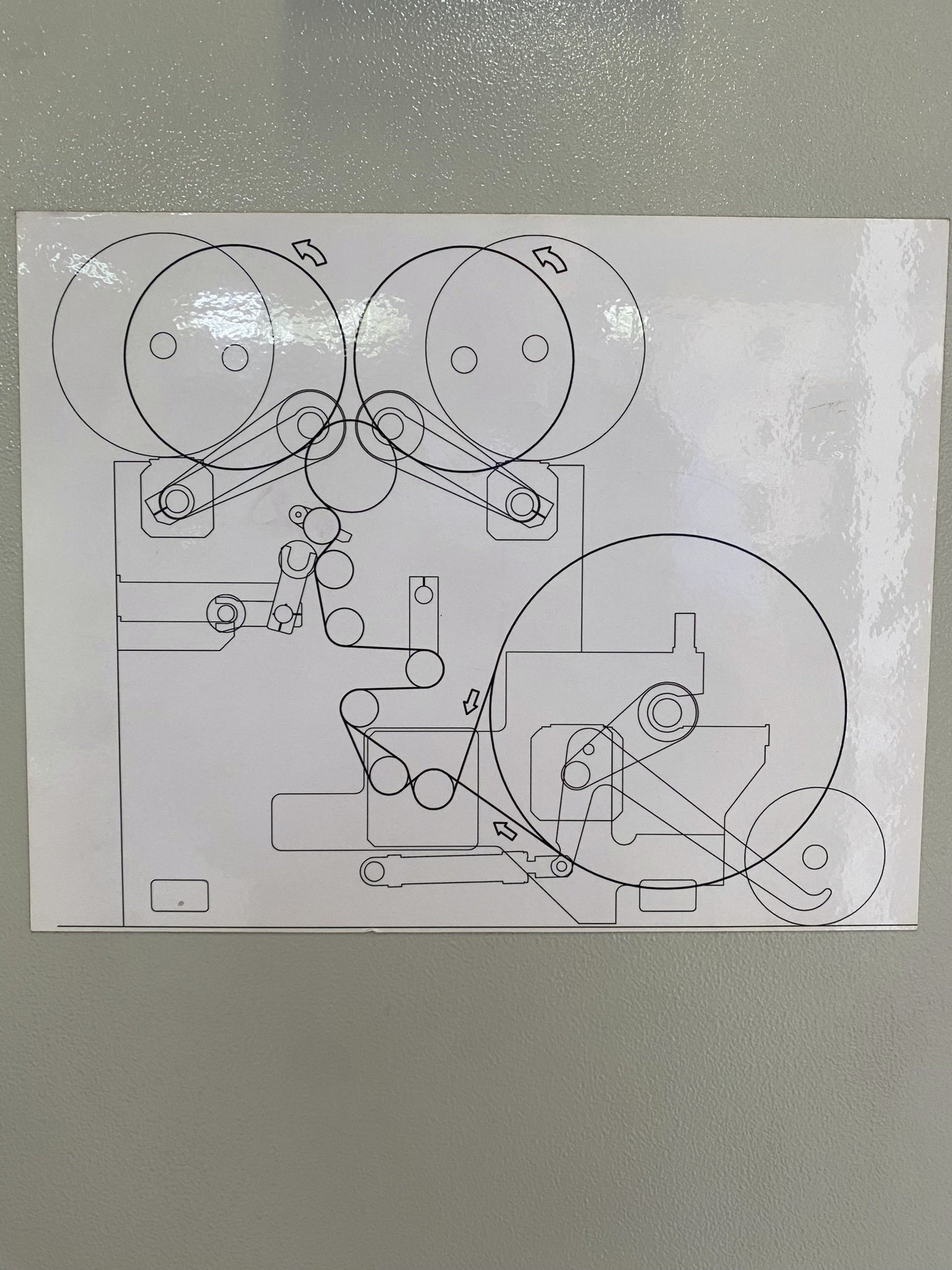

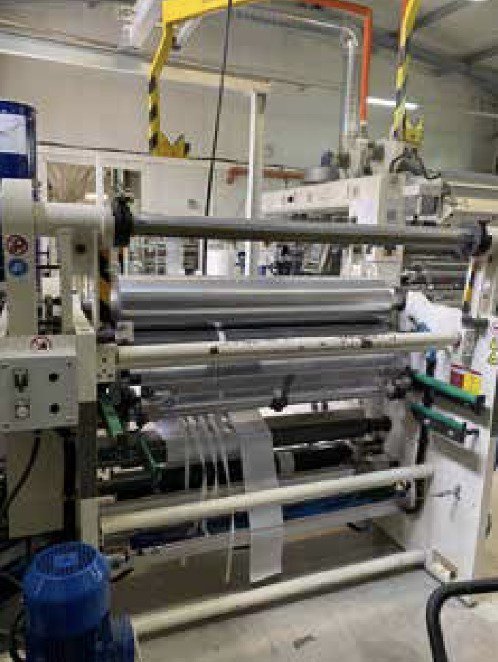

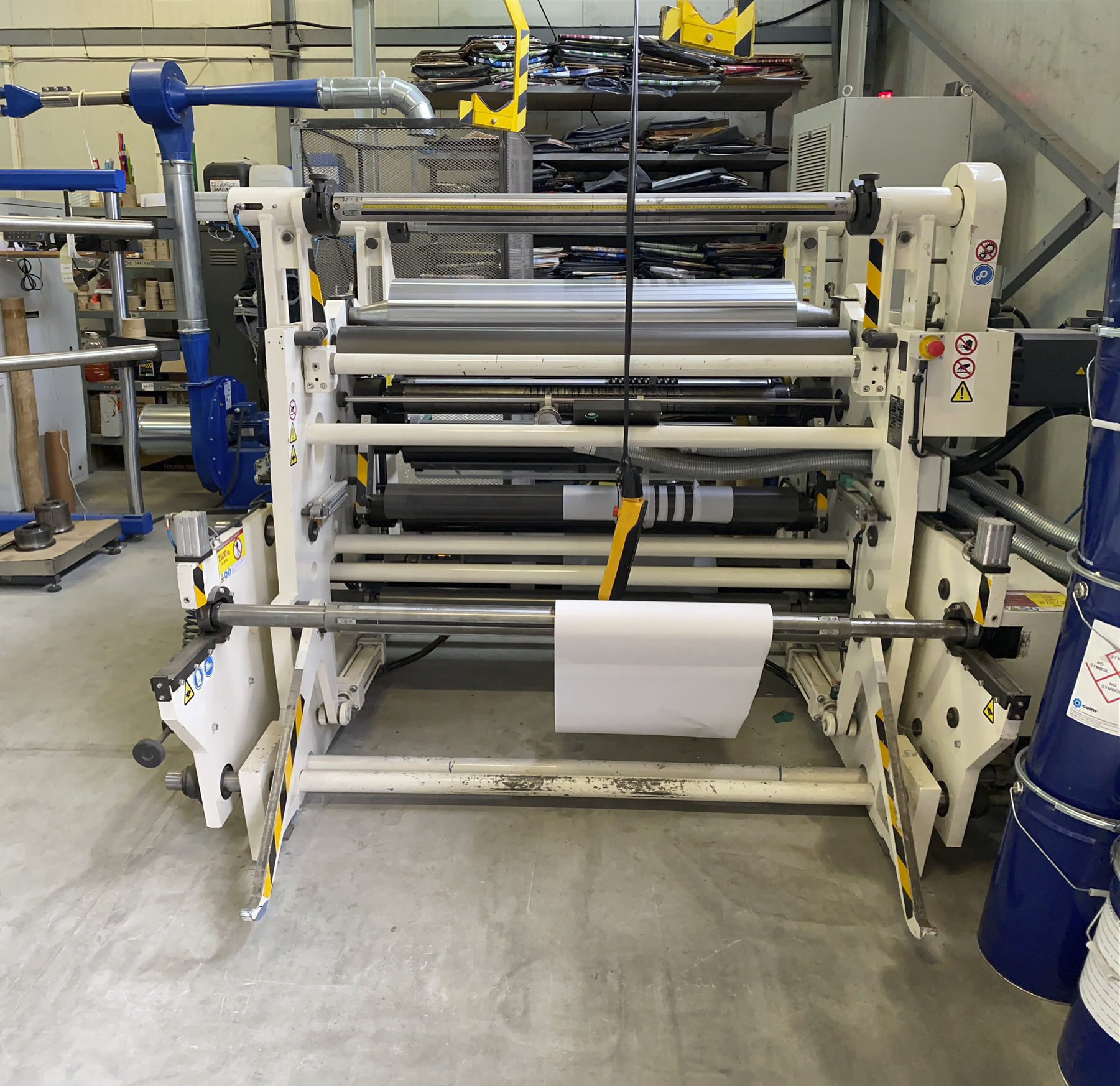

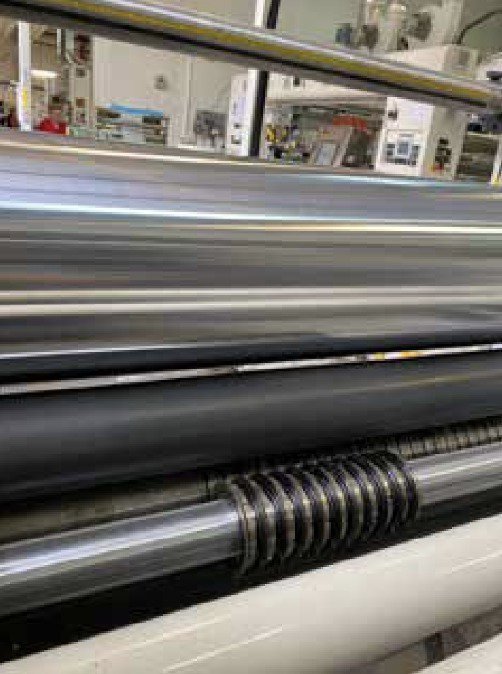

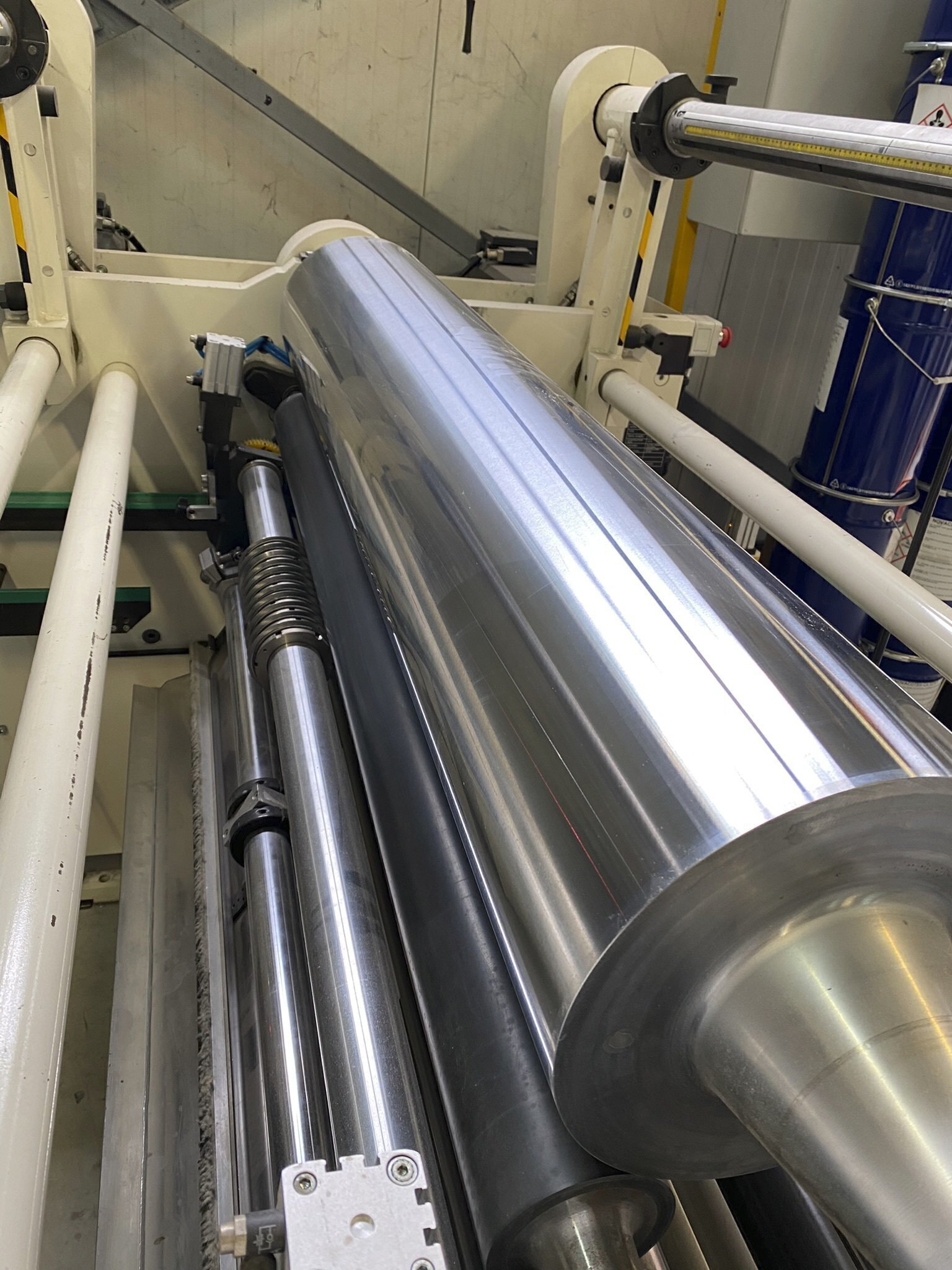

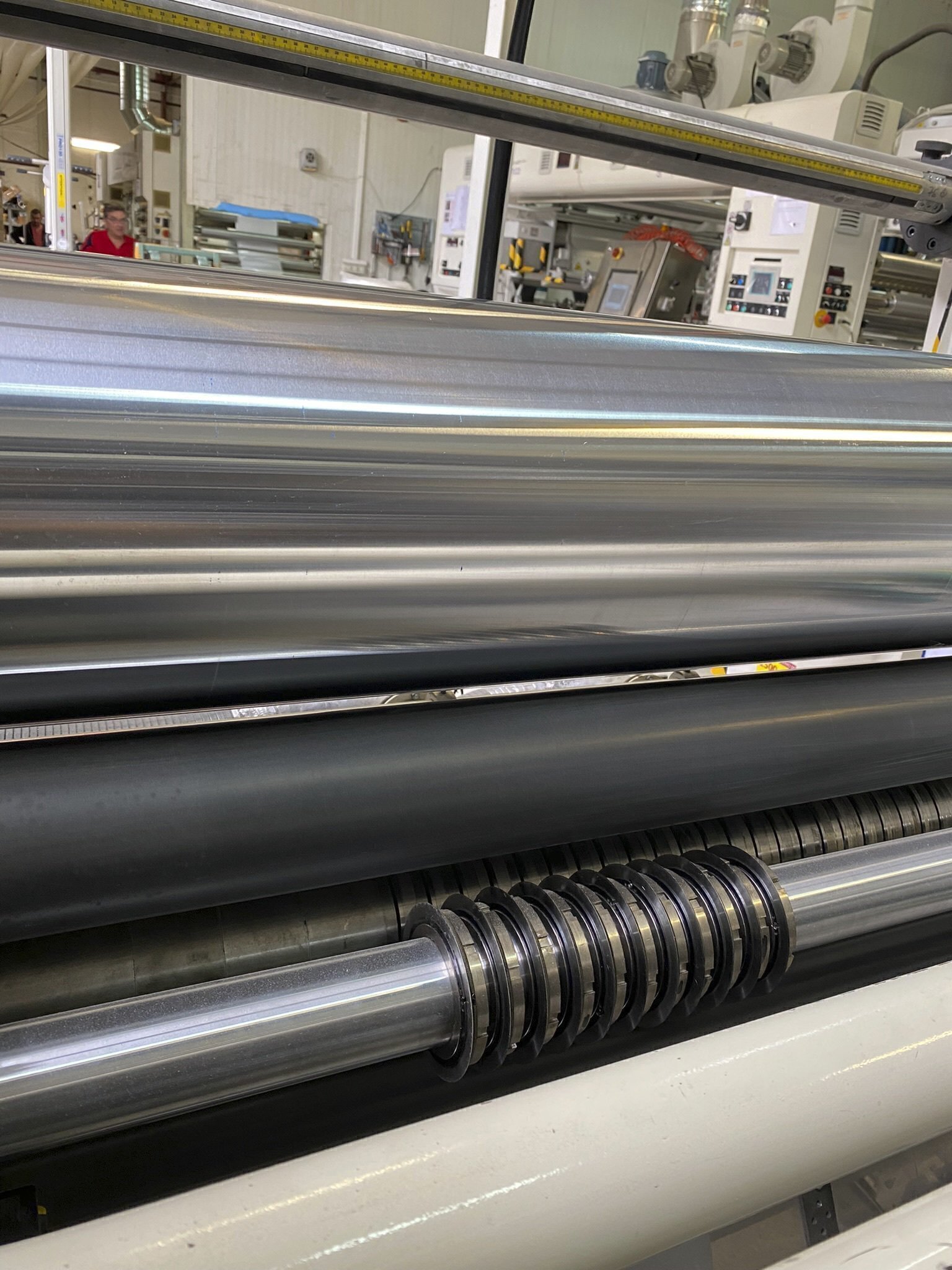

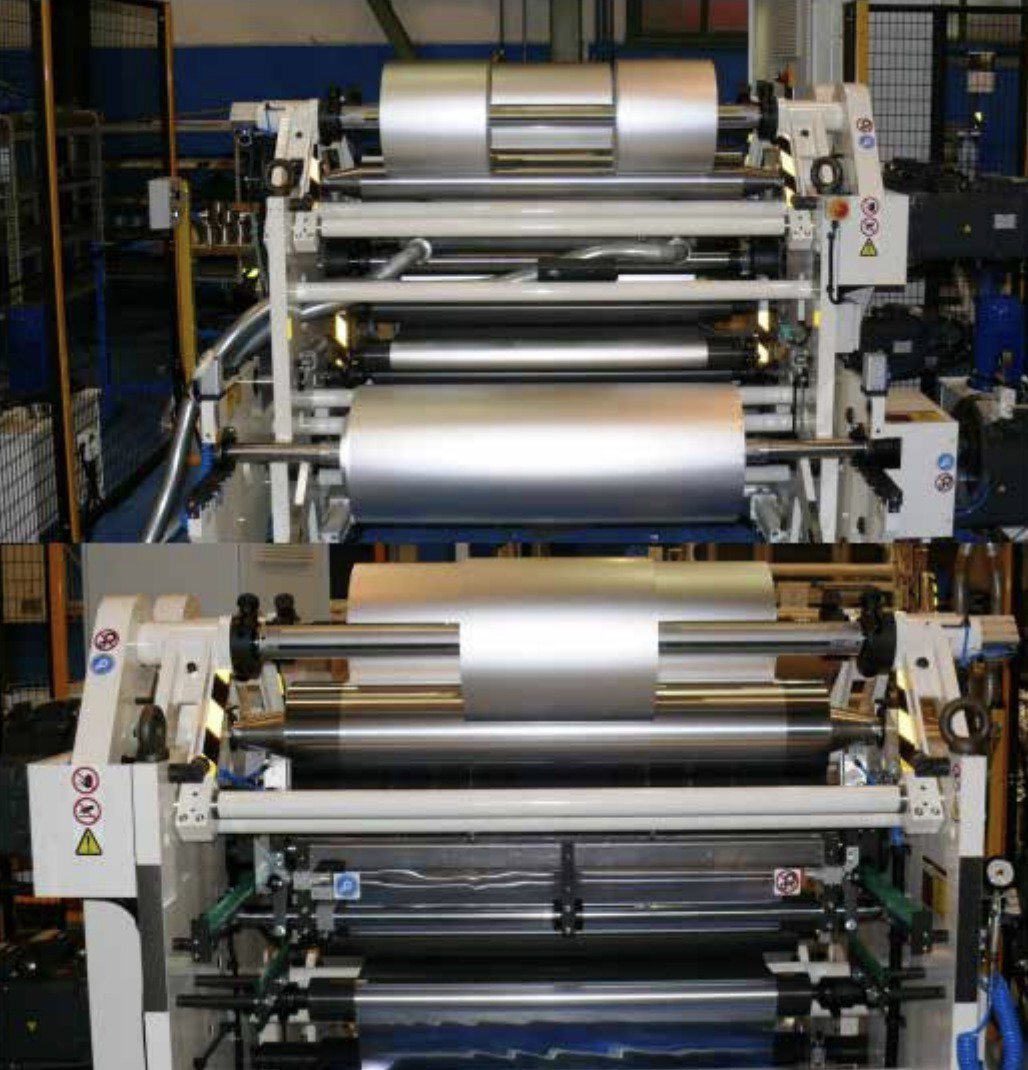

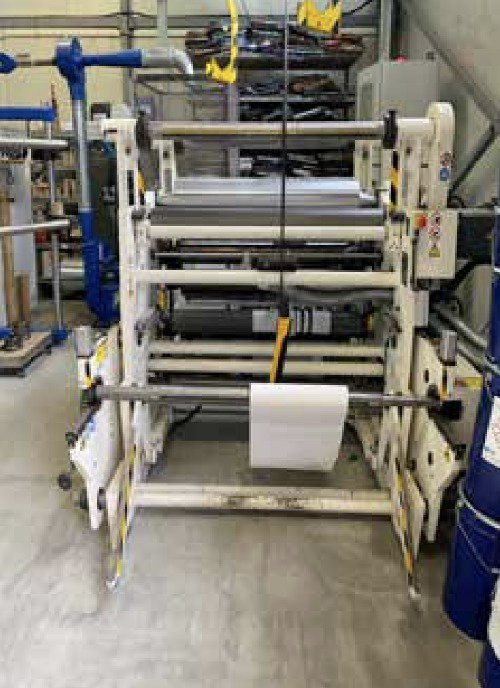

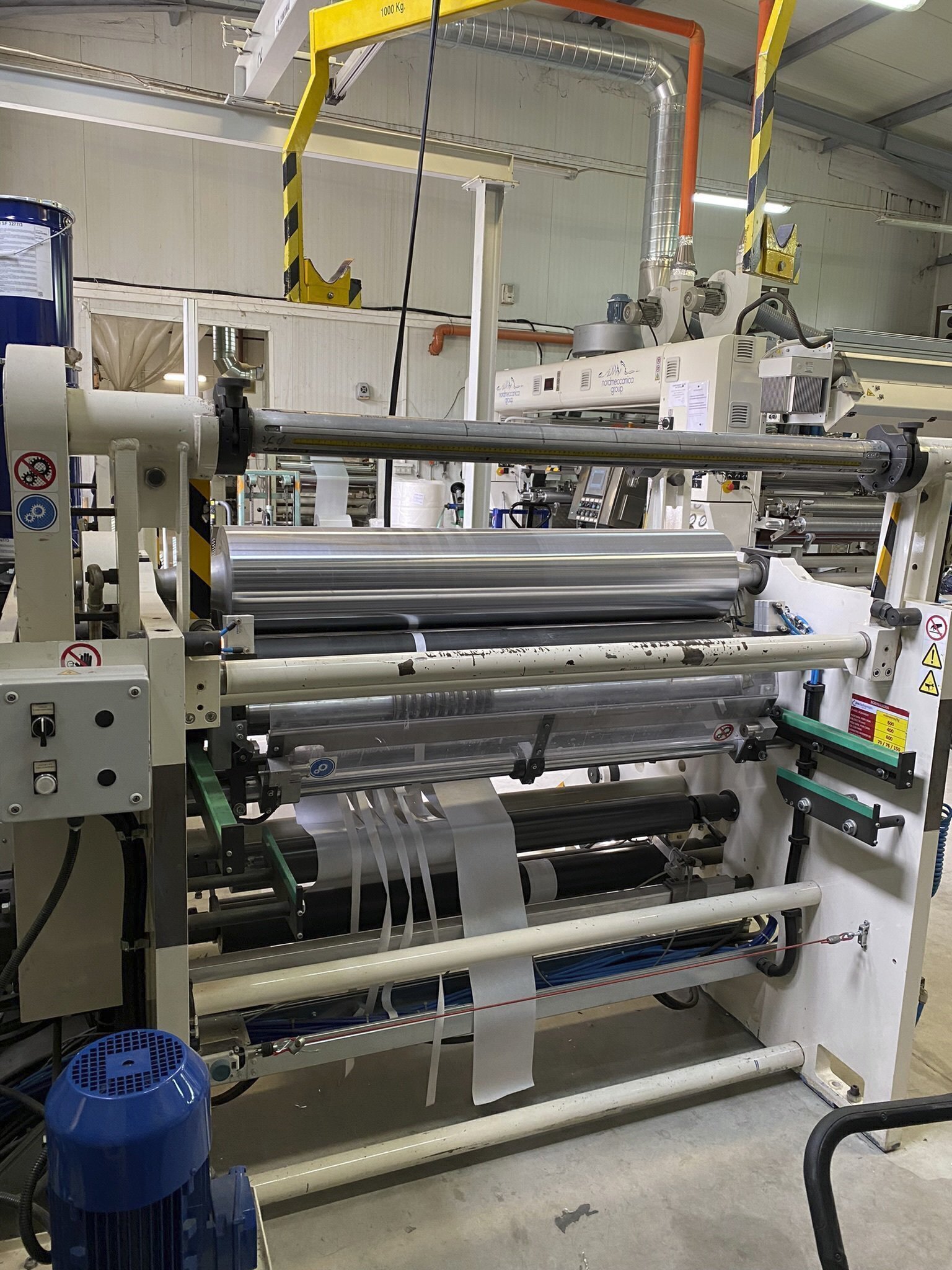

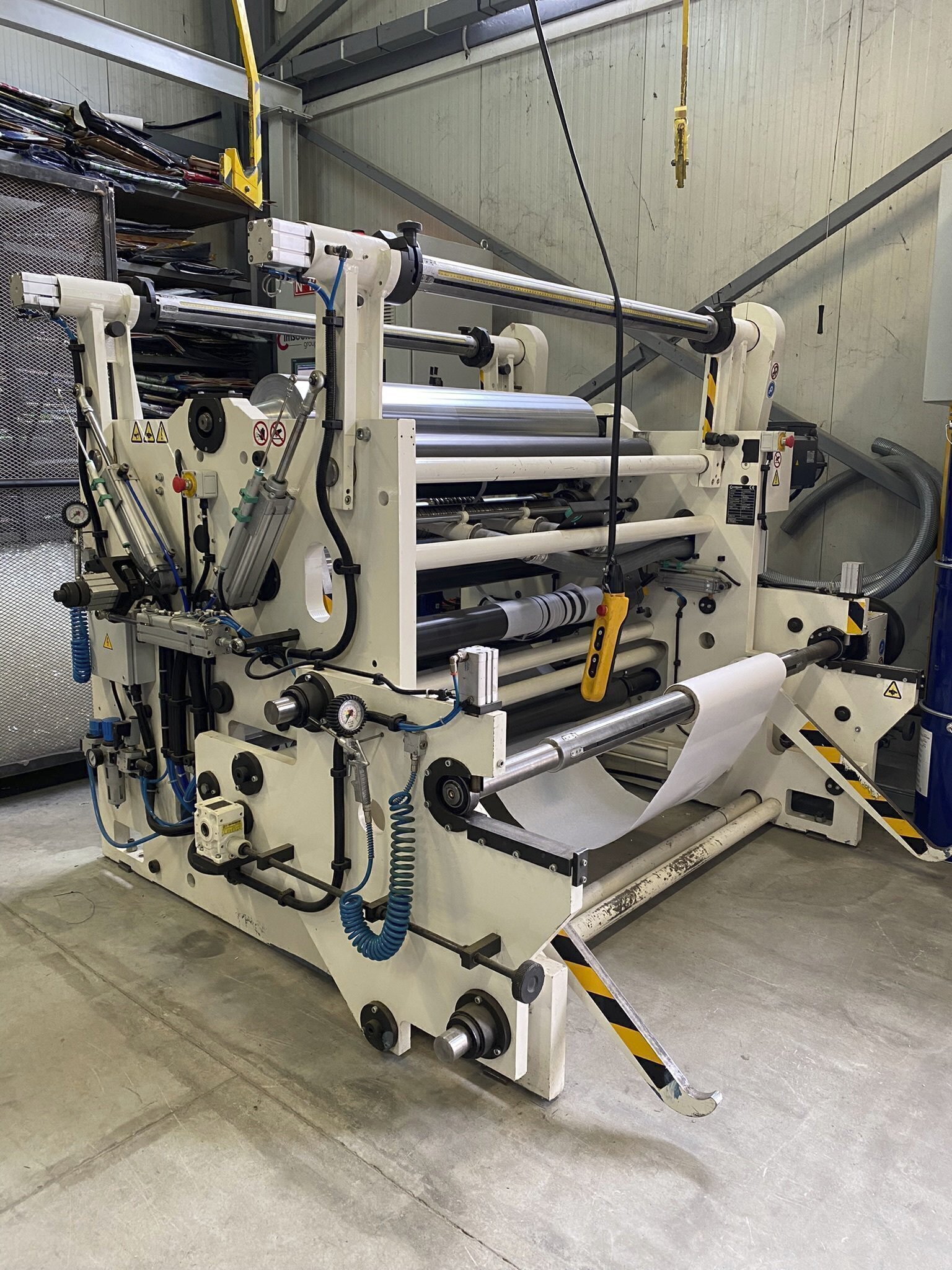

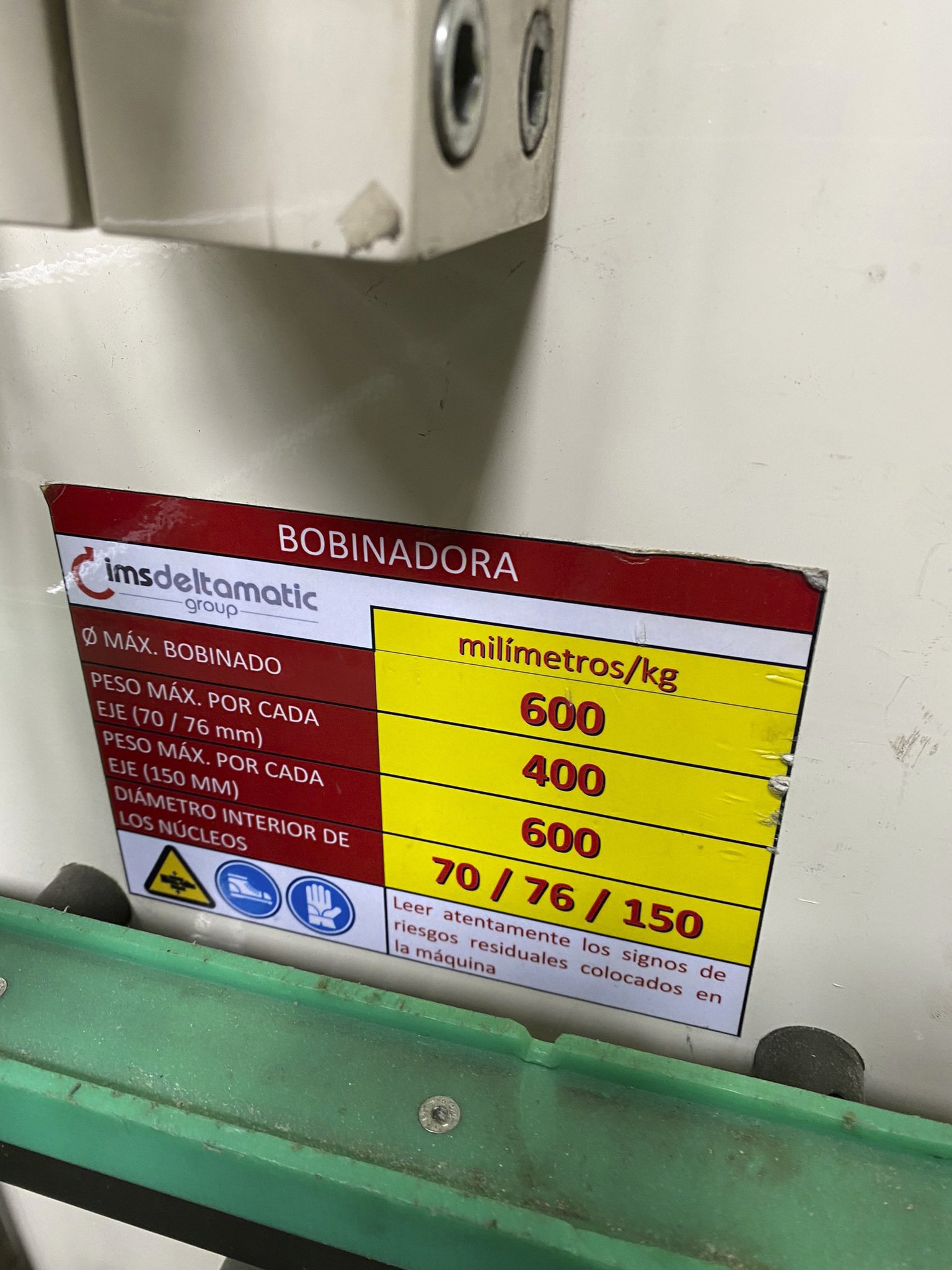

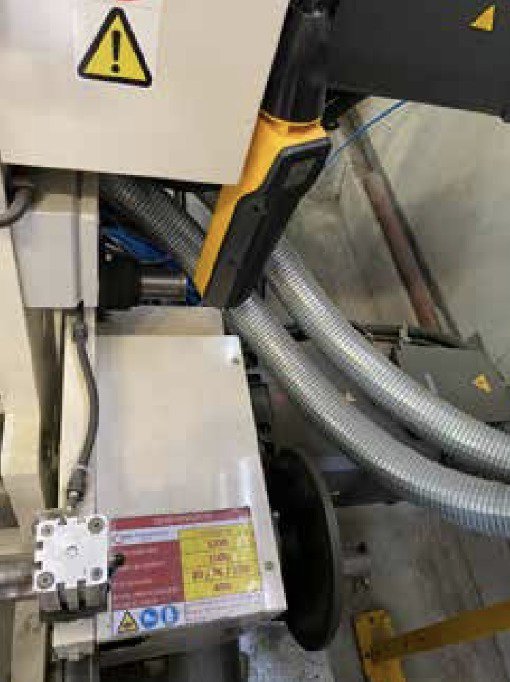

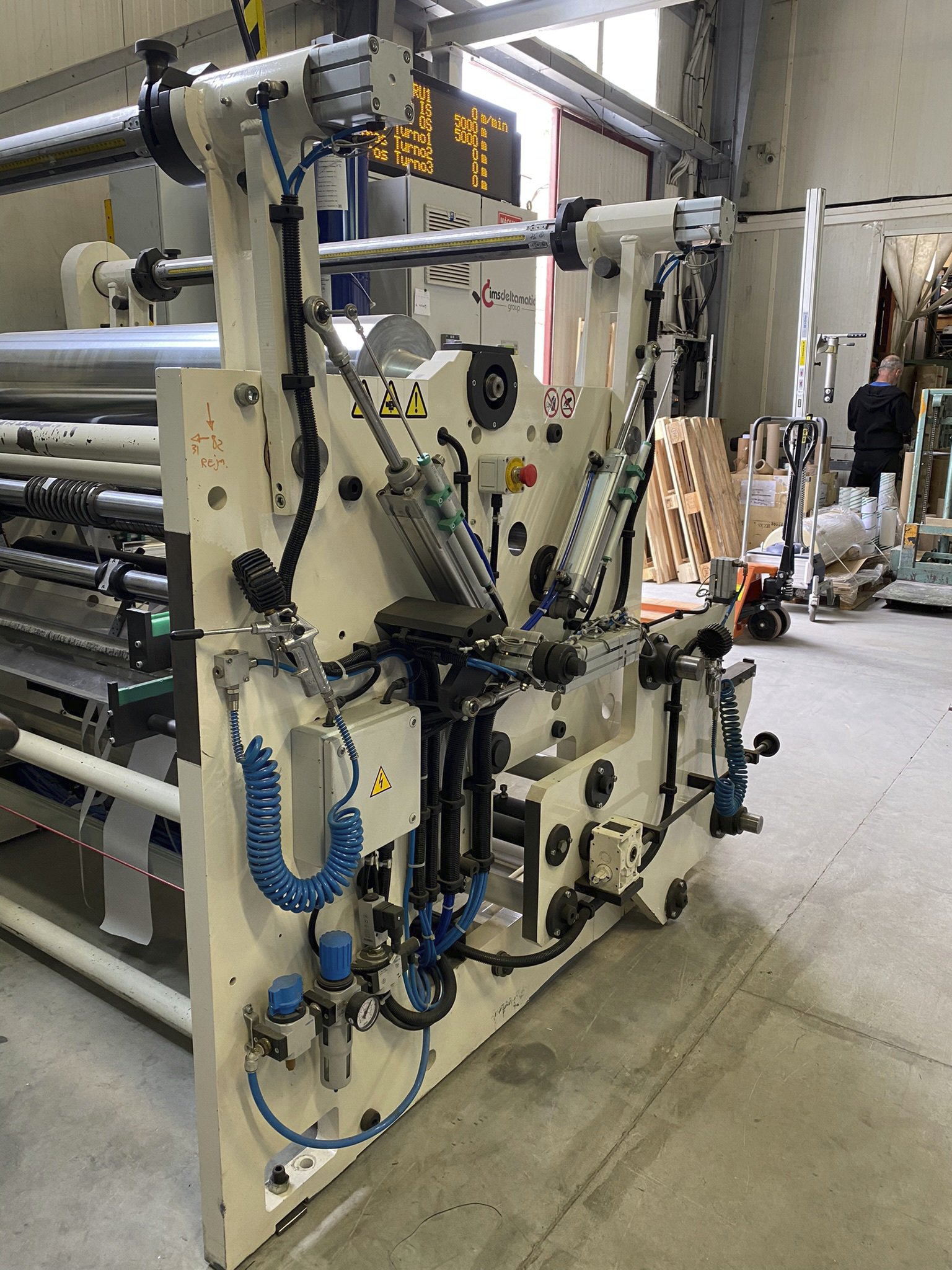

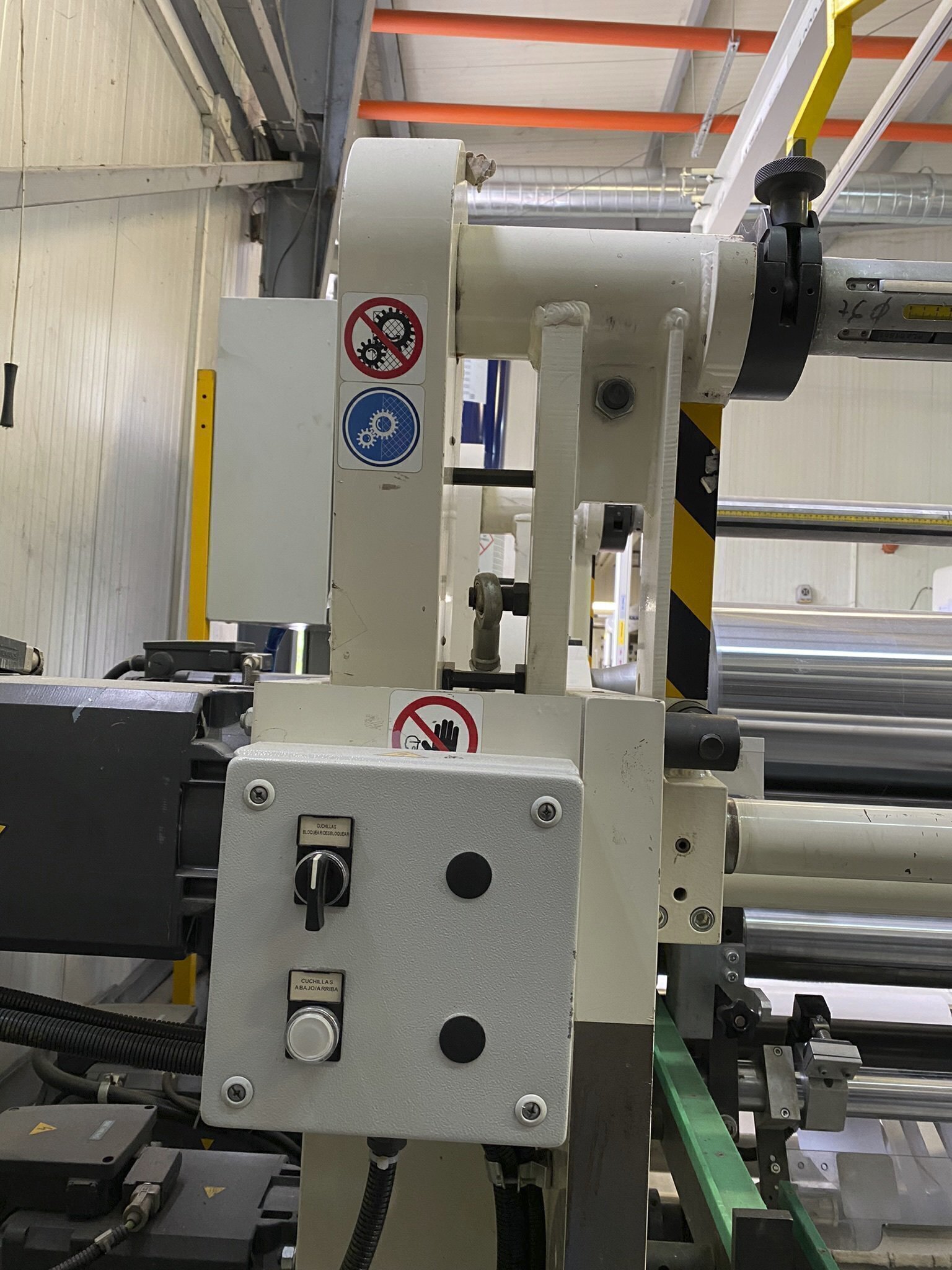

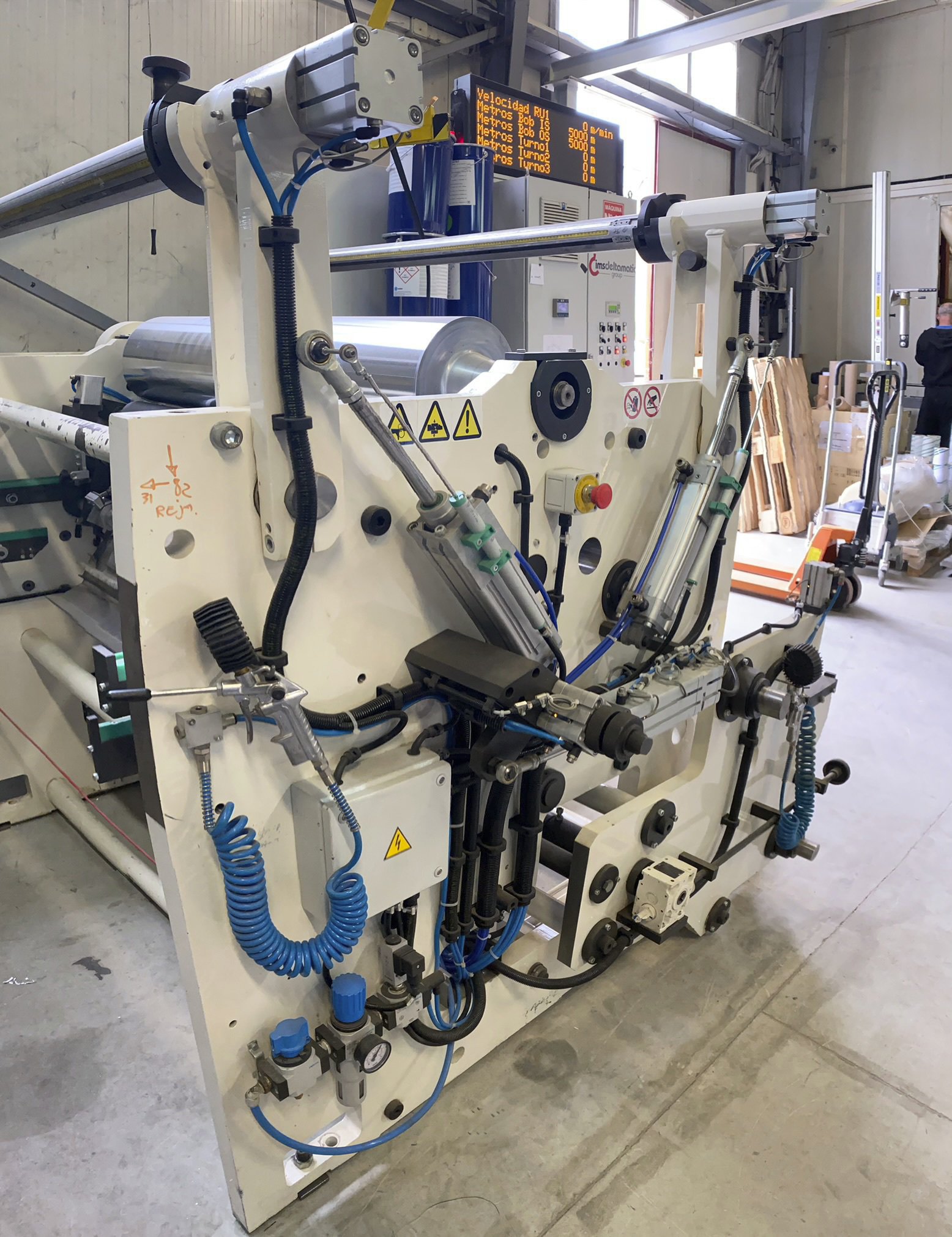

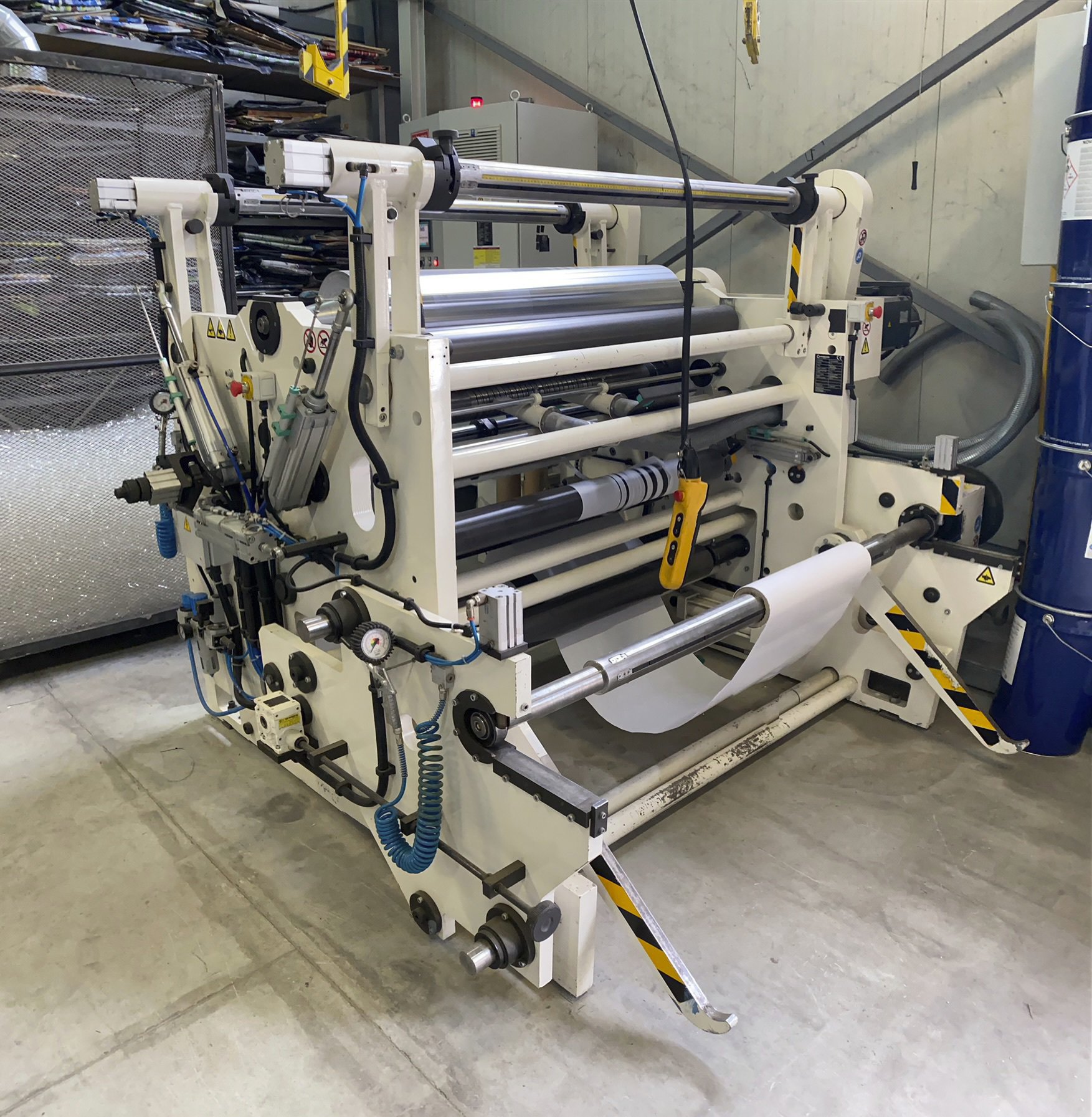

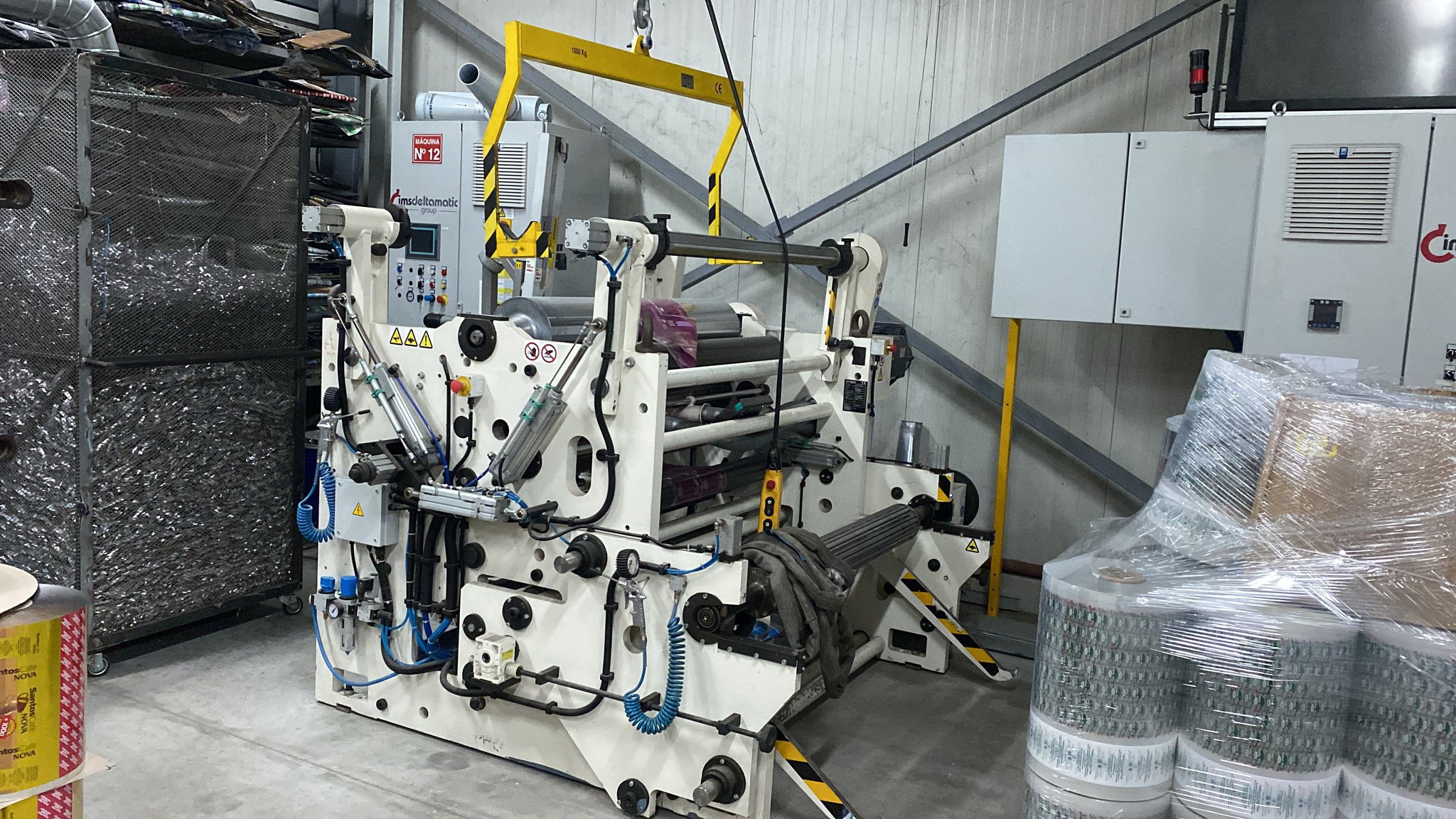

Slitter/Rewinder Mod. IMS Deltamatic RU1-LU1200Material to be slit: ALU-FOIL (H0 to H19)Max. working width: 1200 mmMax. mechanical speed 400 m/min Drive side: rightOperatore side: leftMin. air pressure required: 6 barMax. unwinding: Ø 1000 mmØ in of cores: 70/76/150 mmMax. roll mass (150/152 mm shaft): kg 1.500Min. width of mother roll: 400 mmLifting form the floor (unloading to the floor) for Ø: ≥ 400 mmMax. winding Ø rewinder: 600 mmID of cores: 70/76/150 mmMin. weight for single shaft (70/76 mm): 400 kgMin. weight for single shaft (150 mm): 600 kgOne central drum and 2 sets of arms supporting the rewinding shafts are mounted on a heavy duty machined steel frame designed and built to grant the highest rigidity and extreme mechanical accuracyThe supply includes 1 electro fan, 2 trims suction hoods and 2 piper with a length of max 5 m eachThe unit works with trims having a max width of 20 mm
Technical Details
- Max. rewinding dia: 800 mm
- Max. unwinding dia: 1200 mm
- Mech. speed: 500 m/min.
- HS Code: 84433210 HS Codes Classification of Line printer
Offer Details
- Brand: IMS
- Model: RU1
- Condition: Good
- Year: 2013
- Country: Europe
- Incoterm: Free Carrier
- Under Power: Yes
- Still in production: Yes
- Test possible: Yes
- Complete and in working condition: Yes
- Available: Upon agreement
