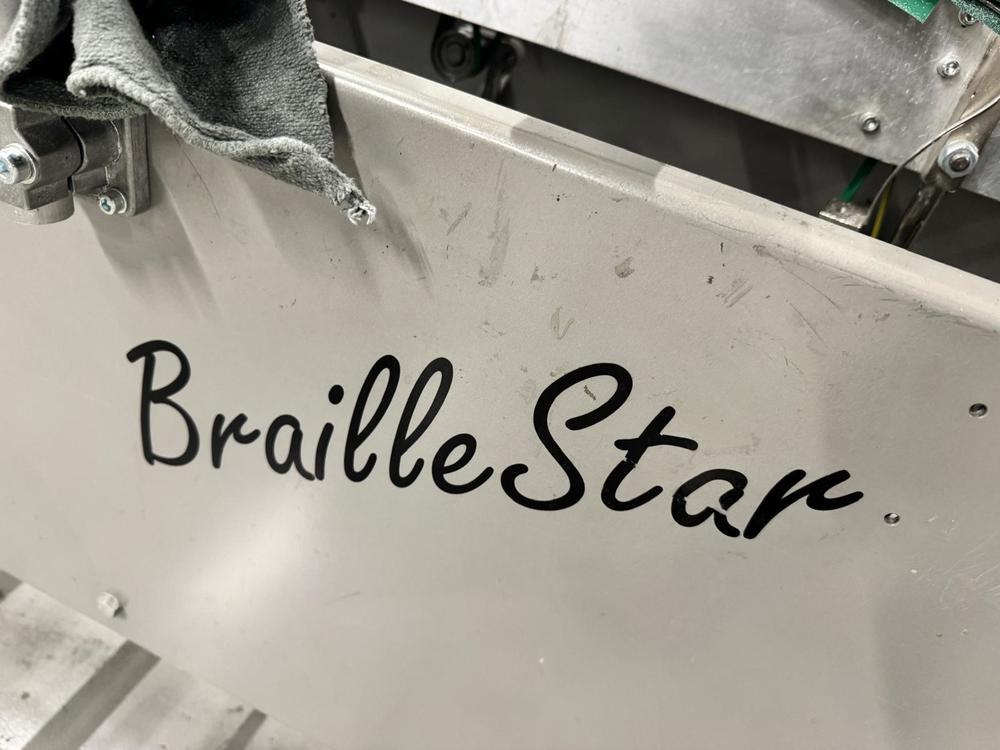

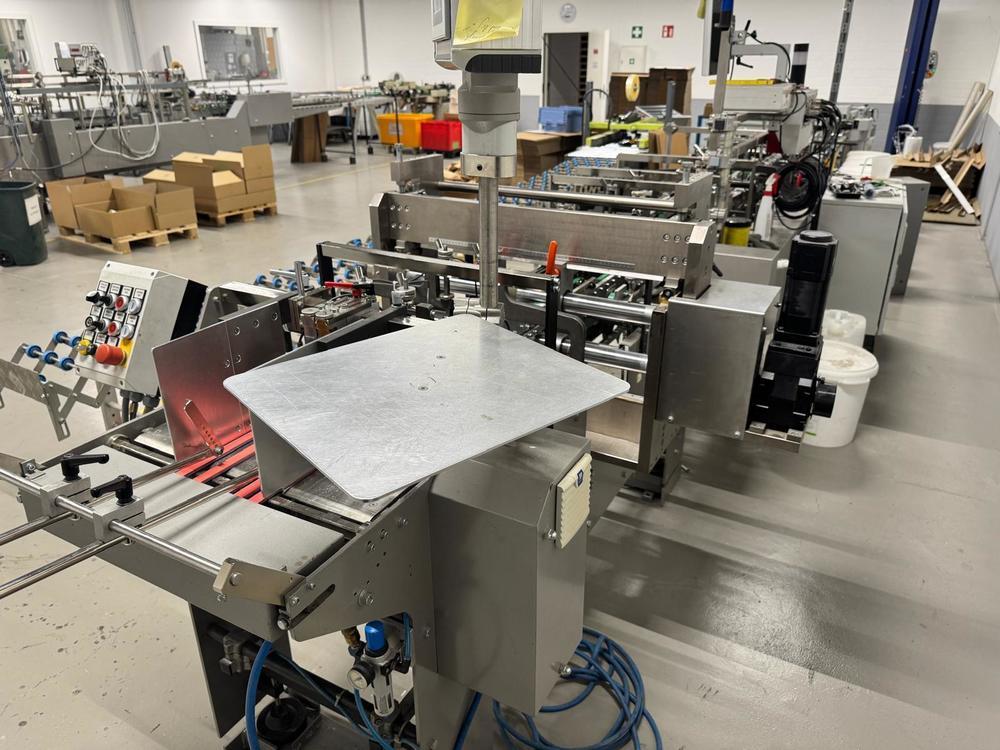

KOHMANN BRAILLESTAR from 2020

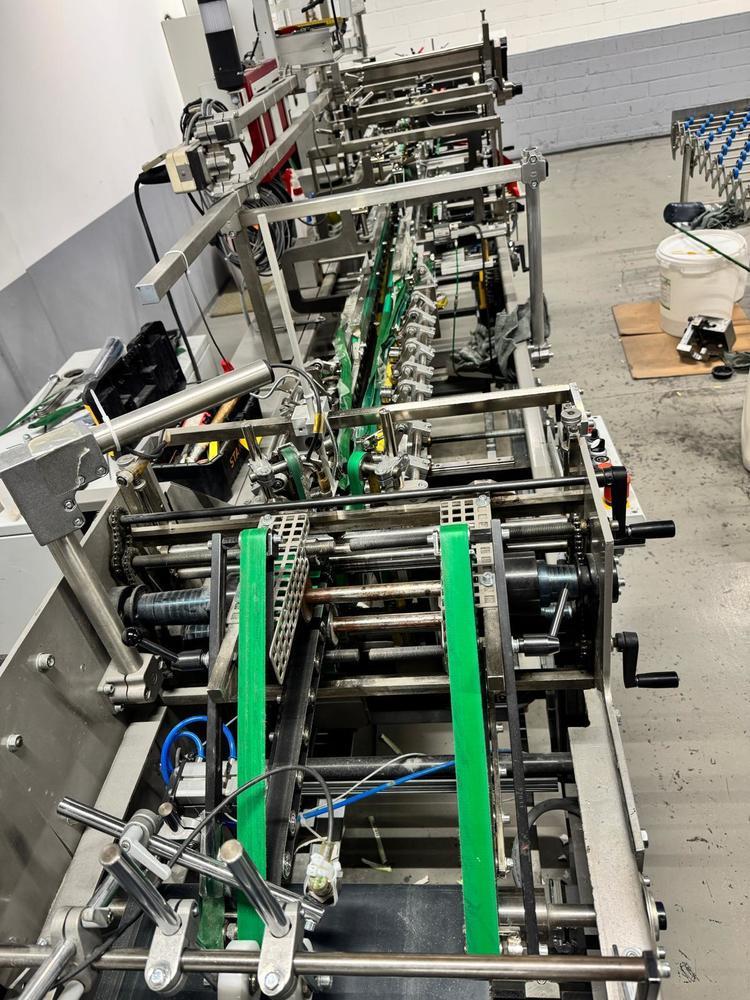

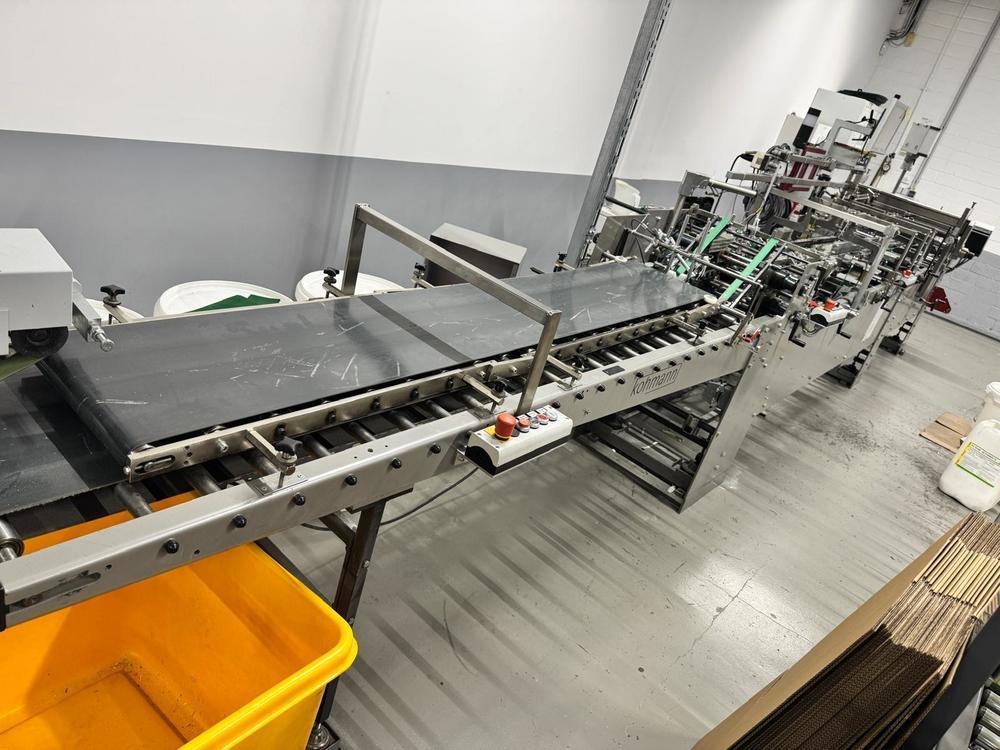

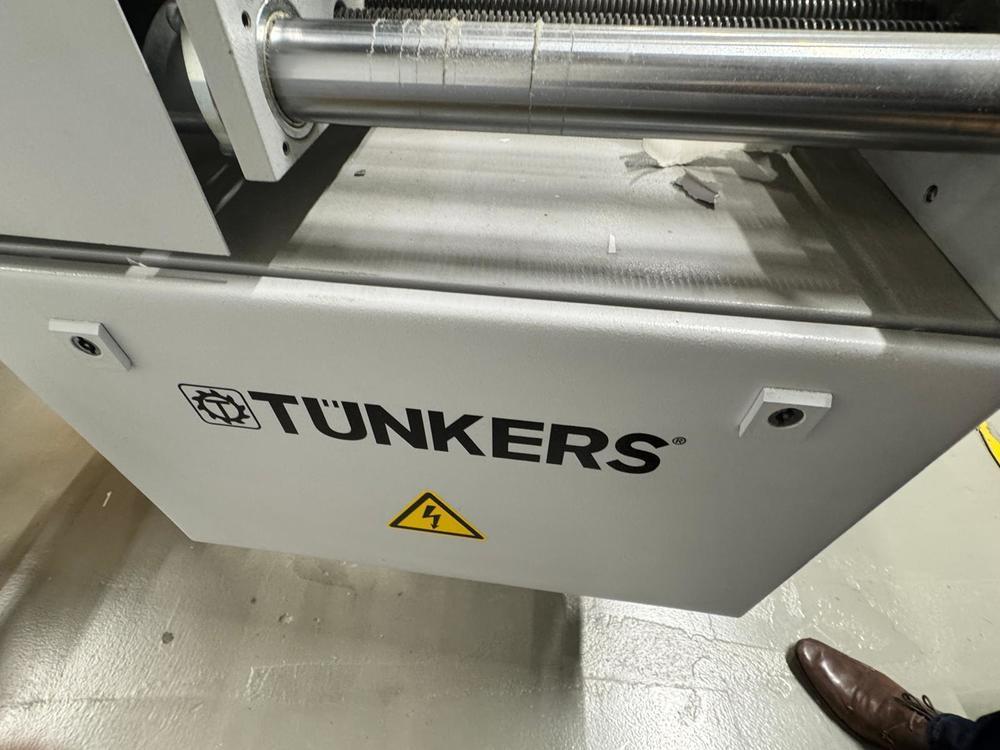

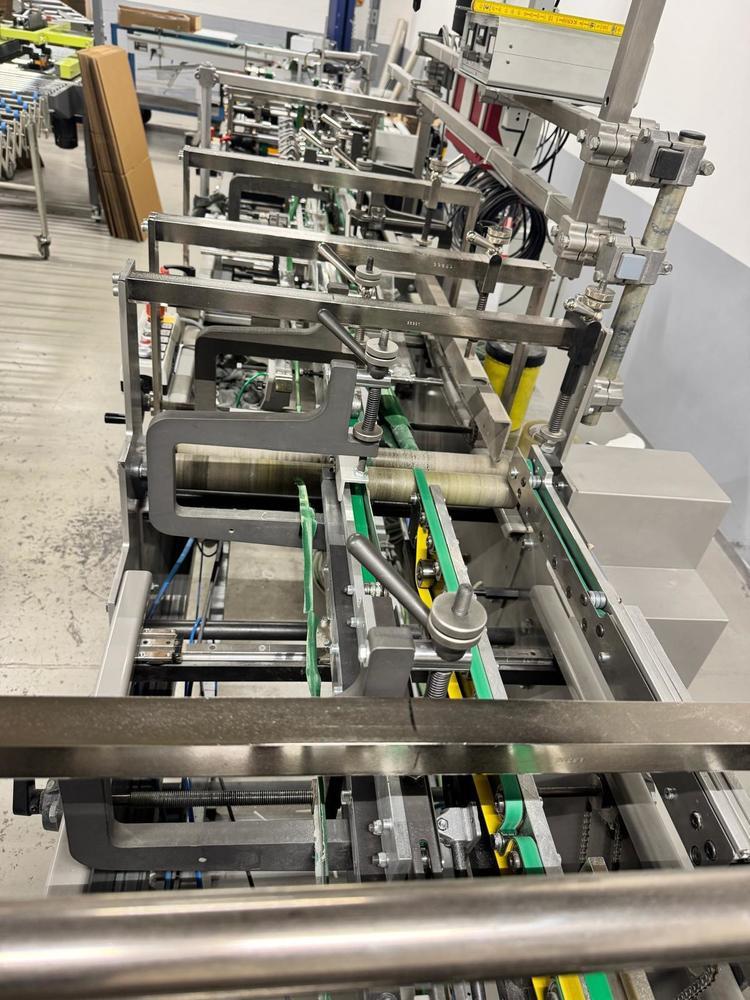

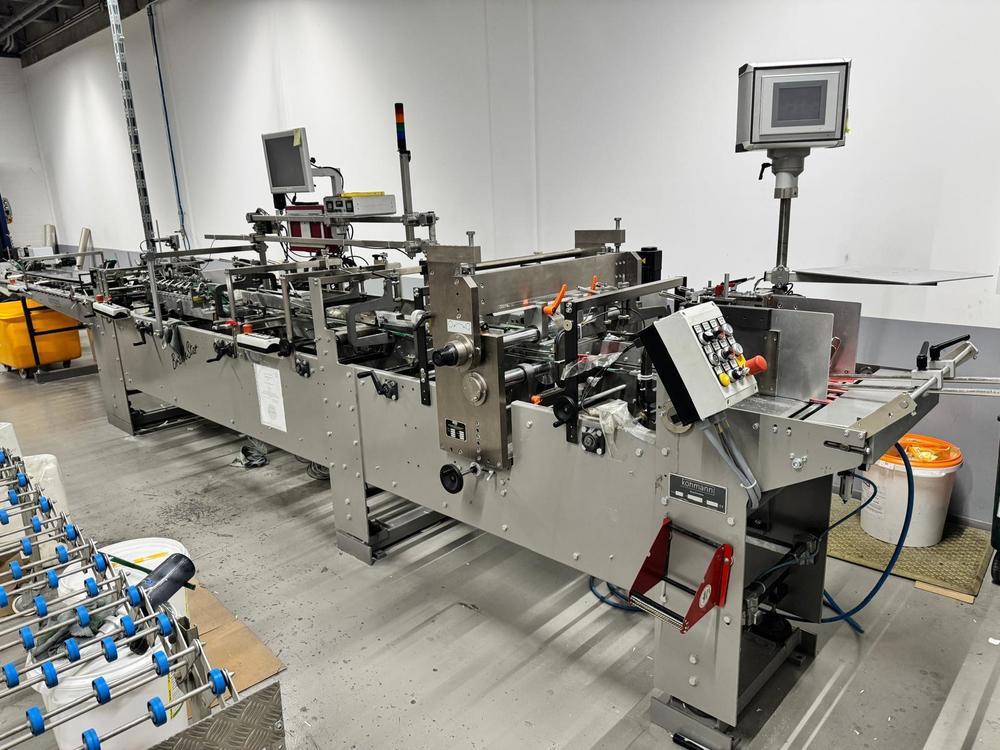

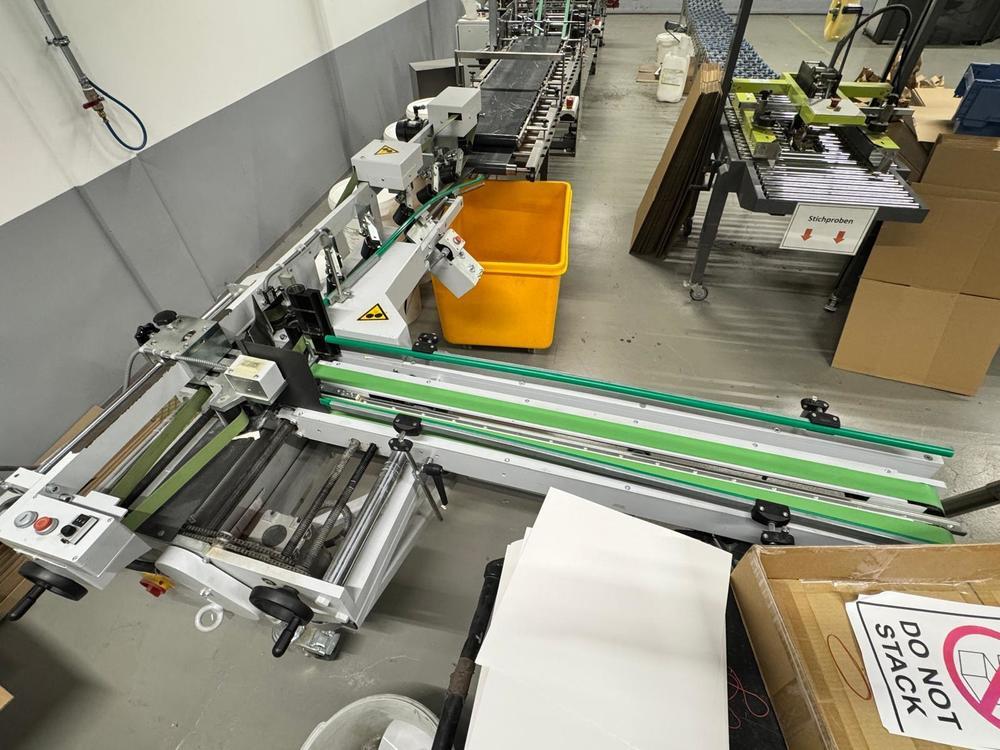

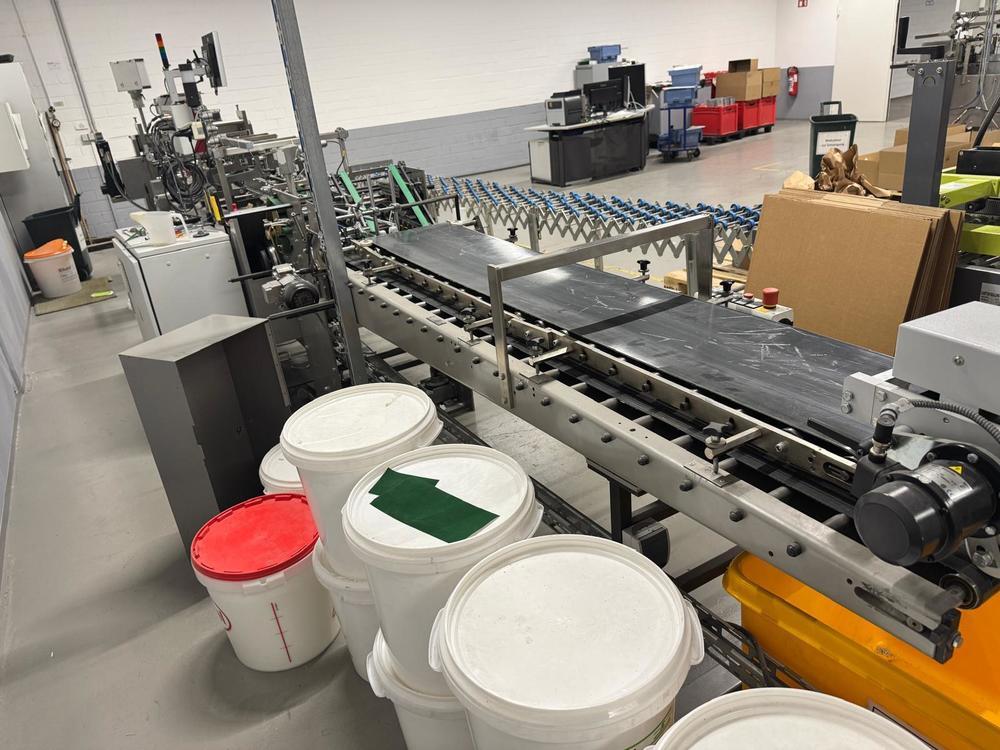

BrailleStar 520 (2020)<>The ideal folding box gluing machine to manufacture folding boxes with Braille relief dots for small and medium sized production<>Braille-station for embossing Braille relief dots<>Feeder with vibrating device<>Infinitely adjustable distance between carton blanks<>Pre-breaking crease 1+3<>Bottom disc glue unit<>Electronic counter with digital display, including preset counter<>Delivery with kick-out device<>Drying and press section synchronised with machine speed, can be controlled separately<>Belt speed 150 m/min<>Overhauled and upgrated in 2022: Integration HHS QS System Xpect Code reader, glue line detector<>TECHNICAL DATA:<>max. belt speed: 150 m/minutes<>max. blank width: 520 mm<>min. blank length: 50 mm<>max. blank length: 400 mm<>blank quality: 200-400 g/m²<>dimensions of the machine: length approx. 7000 mm<>width approx. 1200 mm<>Handypack Tünkers FAS 480 raises the imbricated boxes and directs them at a right angle for sidewise transport. The counting impulse set by the machine is maintained. Therefore, it is easy to unload the boxes.<>Technical data TÜNKERS FAS 480<>Box materials Carton E flute B flute<>Types of boxes Straight-line boxes 4-corner boxes 6-corner boxes Crash-lock boxes<>Box sizes in mm W x L Min. 40 x 40 Max. 420 x 480<>Height of the box flow in mm max. 50<>Electric connected load 1kVA<>Net weight in kg ca. 600<>Dismantled<>In stock
