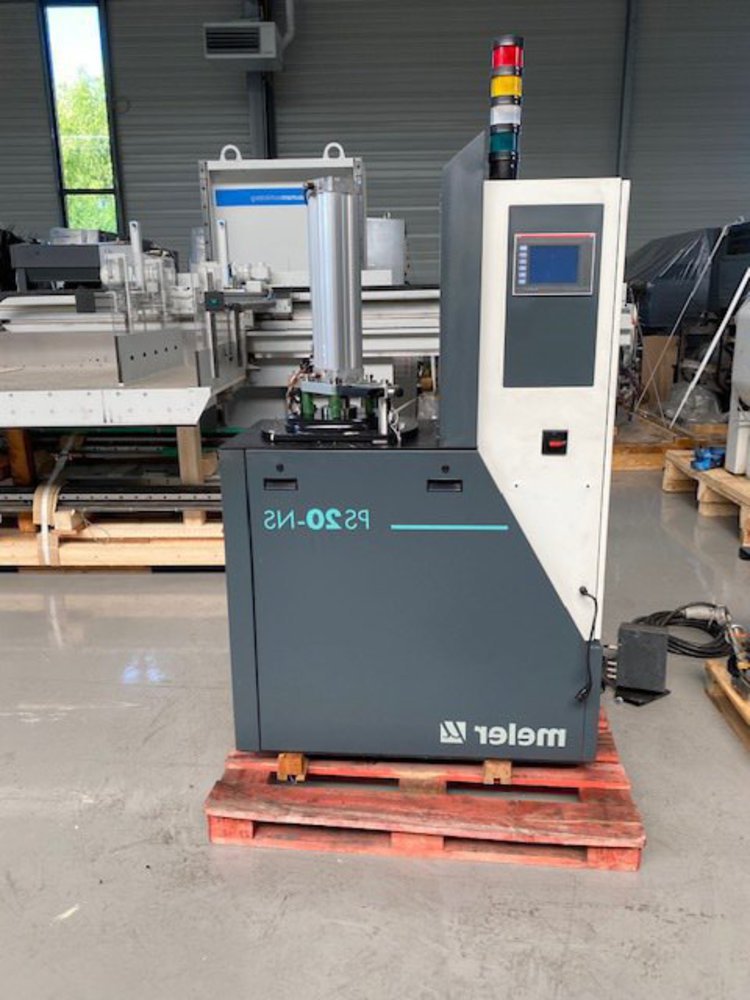

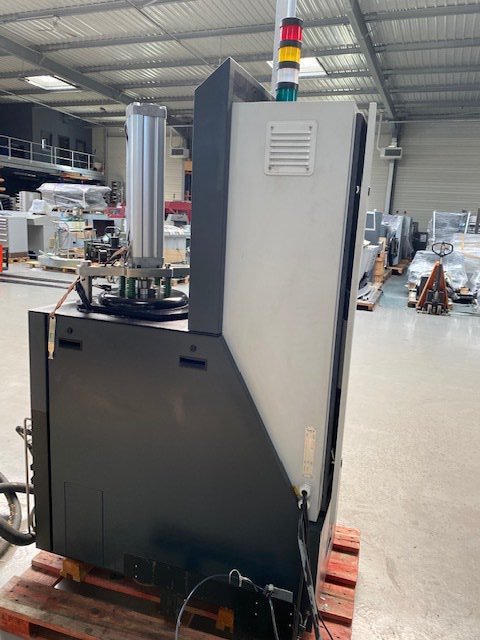

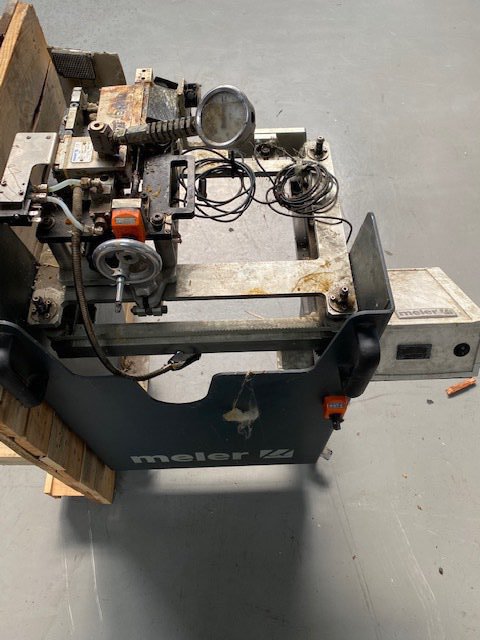

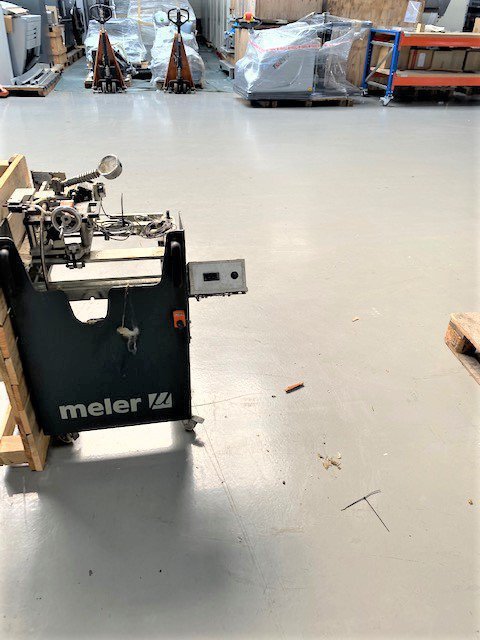

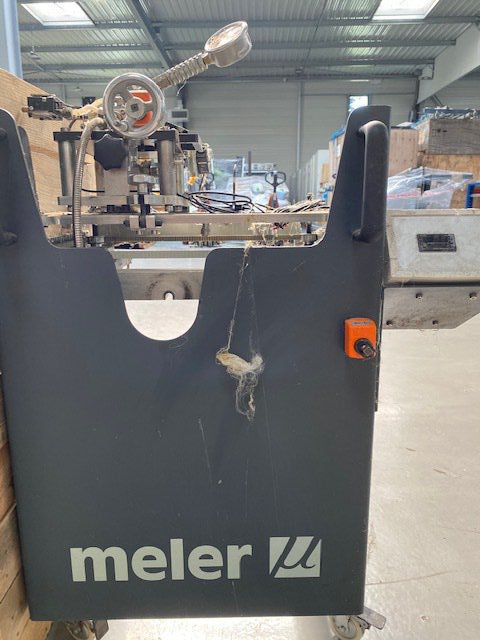

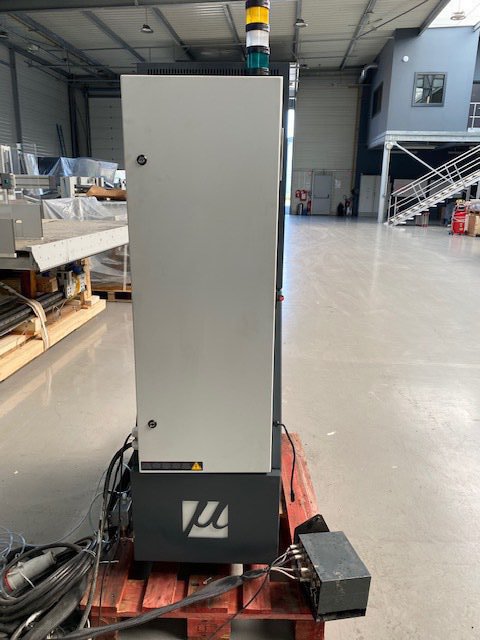

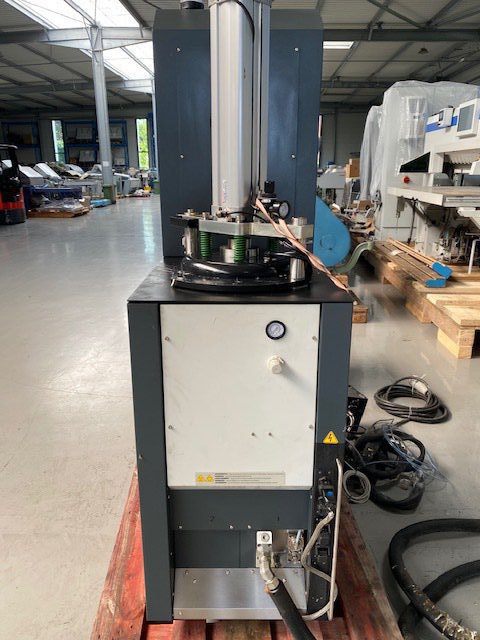

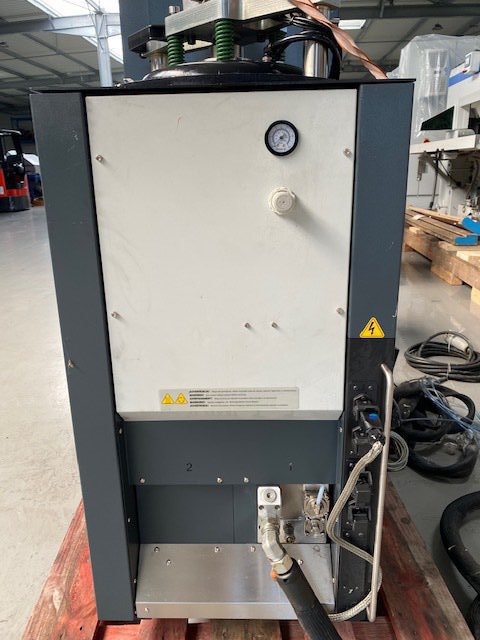

Non-Stop + Drum melter for 20 kg PUR adhesive blocksTrolley with PUR Melting device suitable for Mueller Martini CoronaIntegration of melter in automated production lines for Kolbus or Mueller Martini perfect binding linesReal-time data monitoringRemote controlContinuous block production of PUR, reactive polyolefin and non-reactiveMELT-ON-DEMAND feature: smart melting for adhesive careNON-STOP system to avoid unwanted machine stopsLeak tight design of melter assembly and coverEasy-clean opening ( > 120º)Non-stick surface for easy cleaningSimple and easy to handle cover assemblyCollapsible casing for performing clean-in-placeUp to 6 electrical channelsWider range of gear pumpsLarger variety of extra options: Integration with RTFC system and external temperature controlMain tank volume Ø286 x 395 mm (20 kg blocks)Melting reservoir tank volume 3.5L (used) / 6.5L (max.)Pumping capacity (*) 1, 2.5, 4, 8 and 15 cc/rev single pump2×0.93, 2×1.86, 2×3.71 and 2×4.8 cc/rev double pumpMelting rate (*) Up to 18 kg/hNumber of pumps Up to 2 single pumps or 2 double pumpsNumber of hydraulic output 2 per pumpNumber of electrical outputs 2, 4 or 6 outputs (Standard version)Motor power 0.375 kW/ 0.55kW (with 15cc/rev pump)Speed 10-80 rpm (range 0-100 rpm)Temperature range From 0ºC to 200ºCTemperature control RTD ±0,5ᵒC (Pt100, Ni120 or NTC)Maximum power pressure 80 barBy- pass valve Pneumatic or mechanicalMaximum power supply 1 single pump/ 2 outputs > 4.5kW/ per phase2 single pumps/ 4 outputs > 6.4kW/ per phaseExternal functions Input Motor start/stop external signal, standby external control, activity control, on/off pumping signal,Outputs Temperatures ok output, Finished block signal, Reservoir low level signal, Standby external control input, Motor start/stop external signal, Motor speed external controlElectrical requirements 3N – 400V 50/60 Hz + PE (please consult on other voltages)
