MORGANA

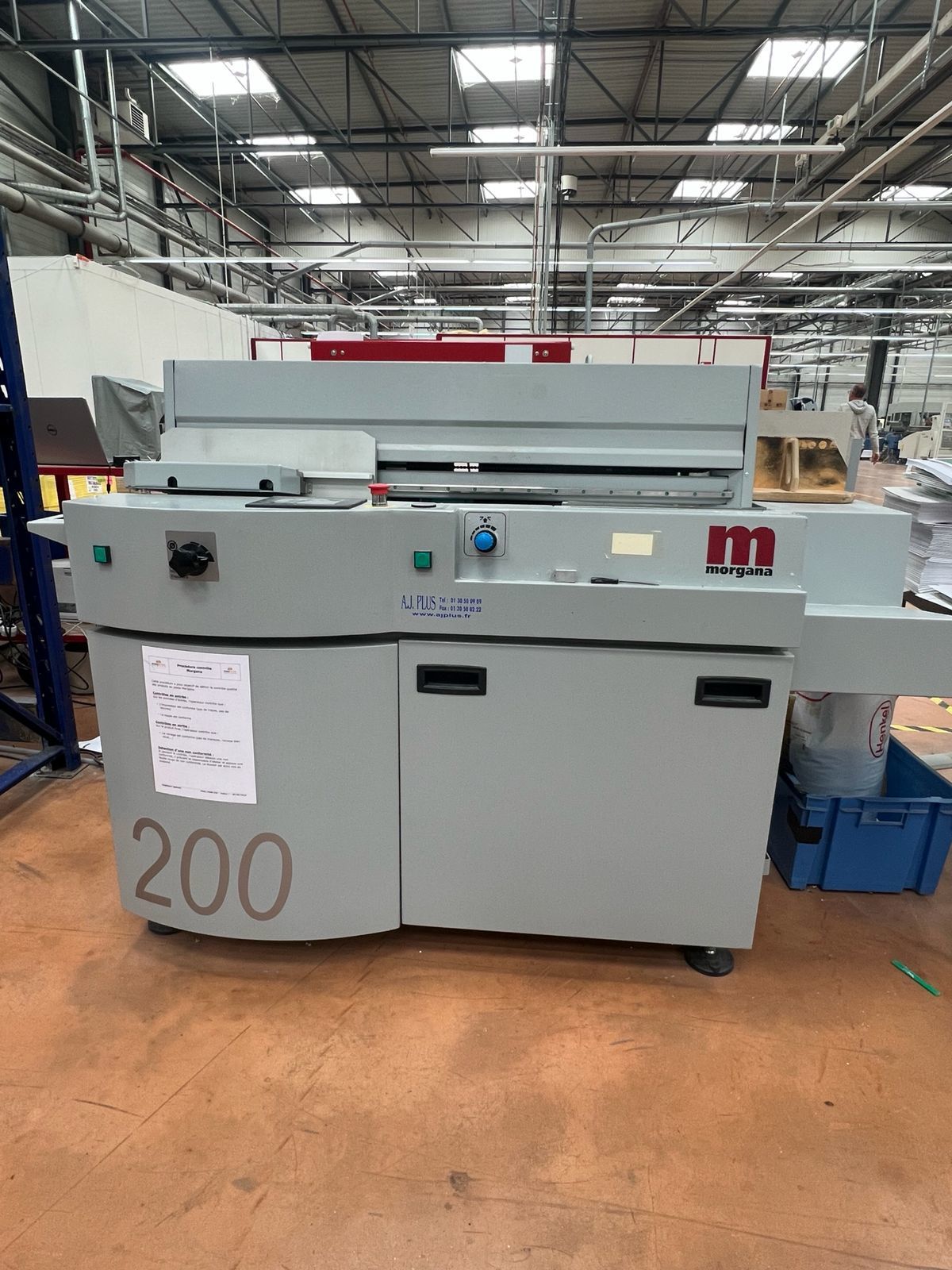

Offer 382235, a MORGANA DIGIBOOK 200 from 2014

Available

Perfect binders · from 2014 · Offer 382235

Specification

Offer number
382235
Manufacturer
MORGANA
Model
DigiBook 200
Year
2014
Availability
Immediately
Counter
In production
No
Description
Up to 200 books per hour <>Touch screen operation with automatic set up <>Binding length (spine) from 4.7″ up to 14.9″ <>Spine thickness from 0.07″ to 1.96″ <>Adjustable spine preparation by sophisticated milling and notching device <>Paper chip extractor <>Patented hermetically sealed PUR application system for a spine and side gluing with automatic glue cut-off <>Automatic cleaning and sealing of the glue head <>Electronic connection to Morgana Autocreaser Pro for cover creasing <>Touch screen <>Spine length (Max / Min): 380mm x 120mm <>Book height (Max / Min): 325mm x 110mm <>Block/spine thickness: 2 – 50mm <>Cover dimension maximum: 700mm x 380mm <>Cover dimension minimum: 222mm x 120mm <>Maximum cover weight: 400gsm <>Speed: Up to 200 books per hour <>Dimensions: L 1770mm x W 900mm x H 1270mm <>Electrical Requirements: 220v, 16amp <>Product Weight: 551 lbs (250 kg)
Technical details
Max. book size
325x110 mm
Binding lenght max./min.
120mm up to 380mm
Cover size max.
700x380 mm
Cover size min.
222x120 mm
Max. speed
200 books/hour
Clamps
1
Hs code
84439959 HS Codes Classification of Other
Offer details
Condition
Good
Country
France
Incoterm
Free Carrier
Under power
No
Still in production
No
Test possible
No
Complete and in working condition
Yes
