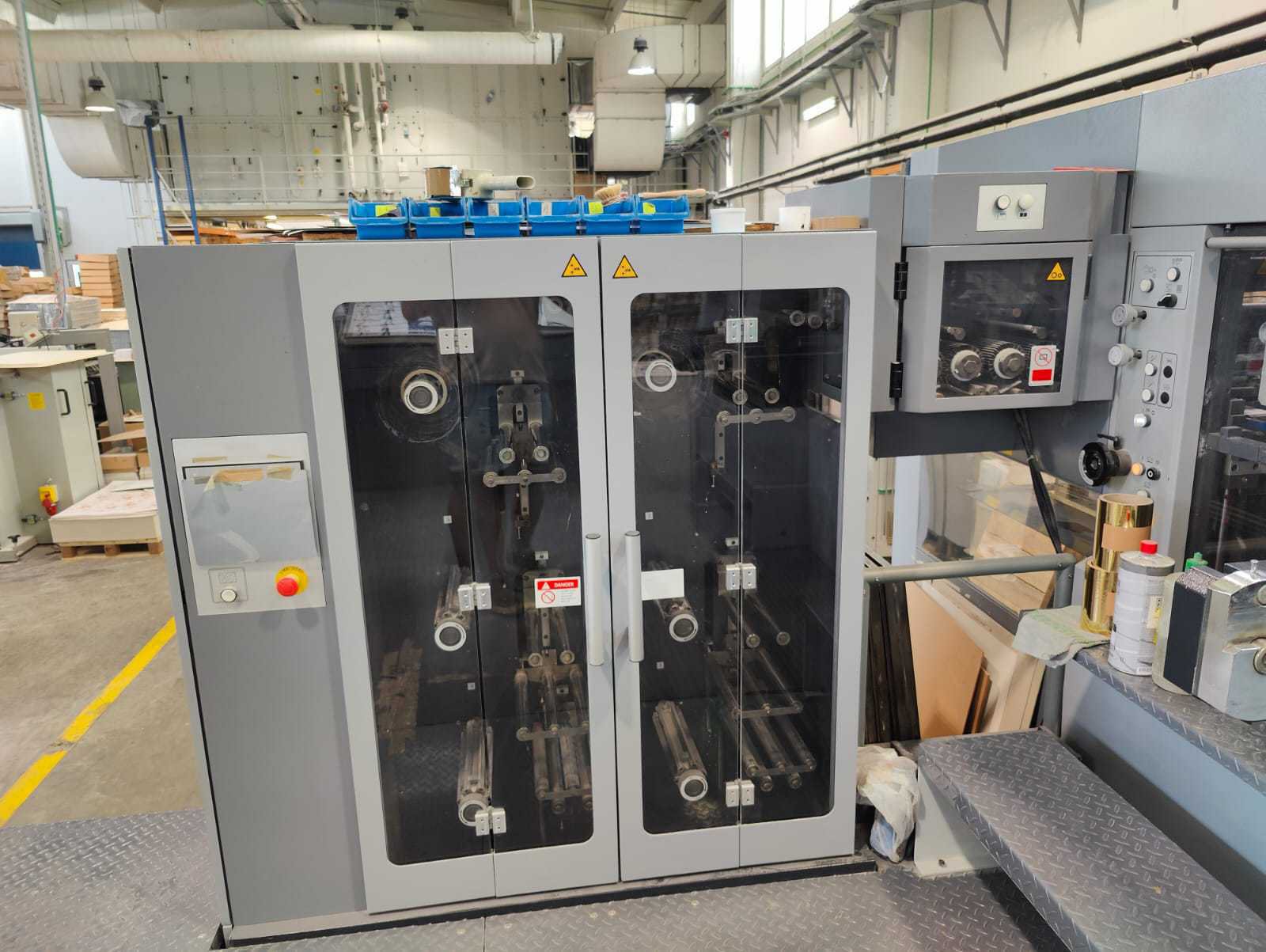

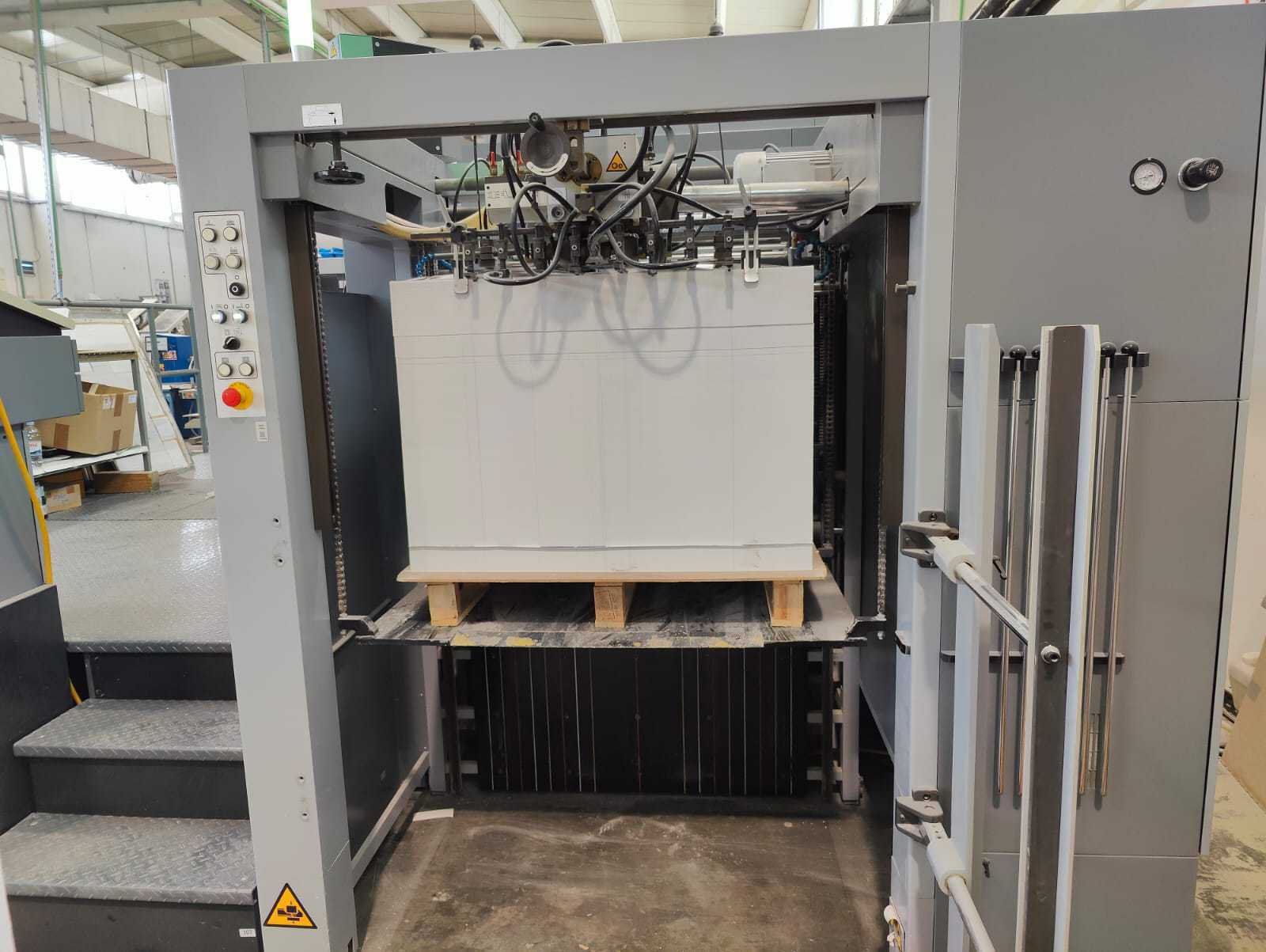

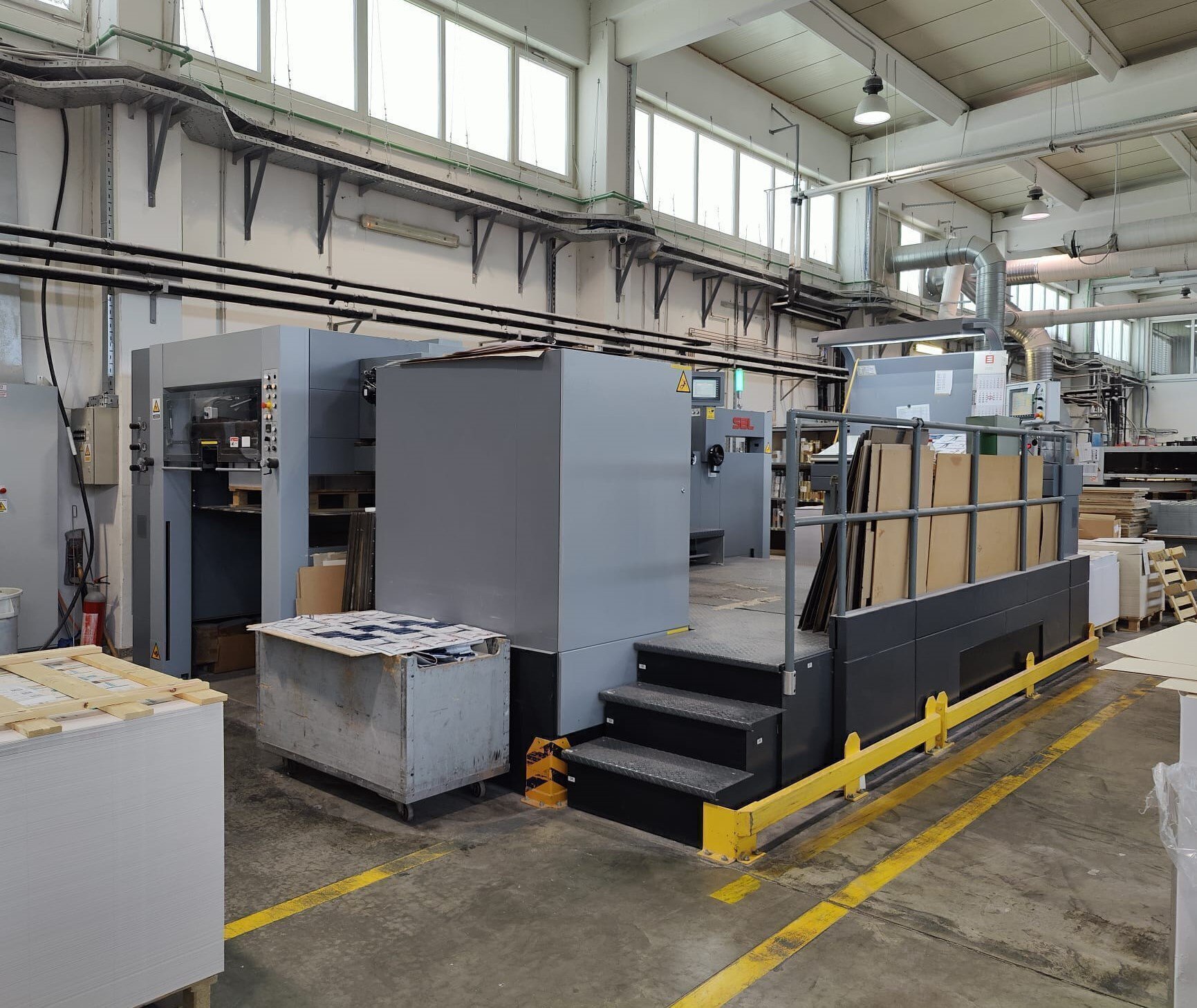

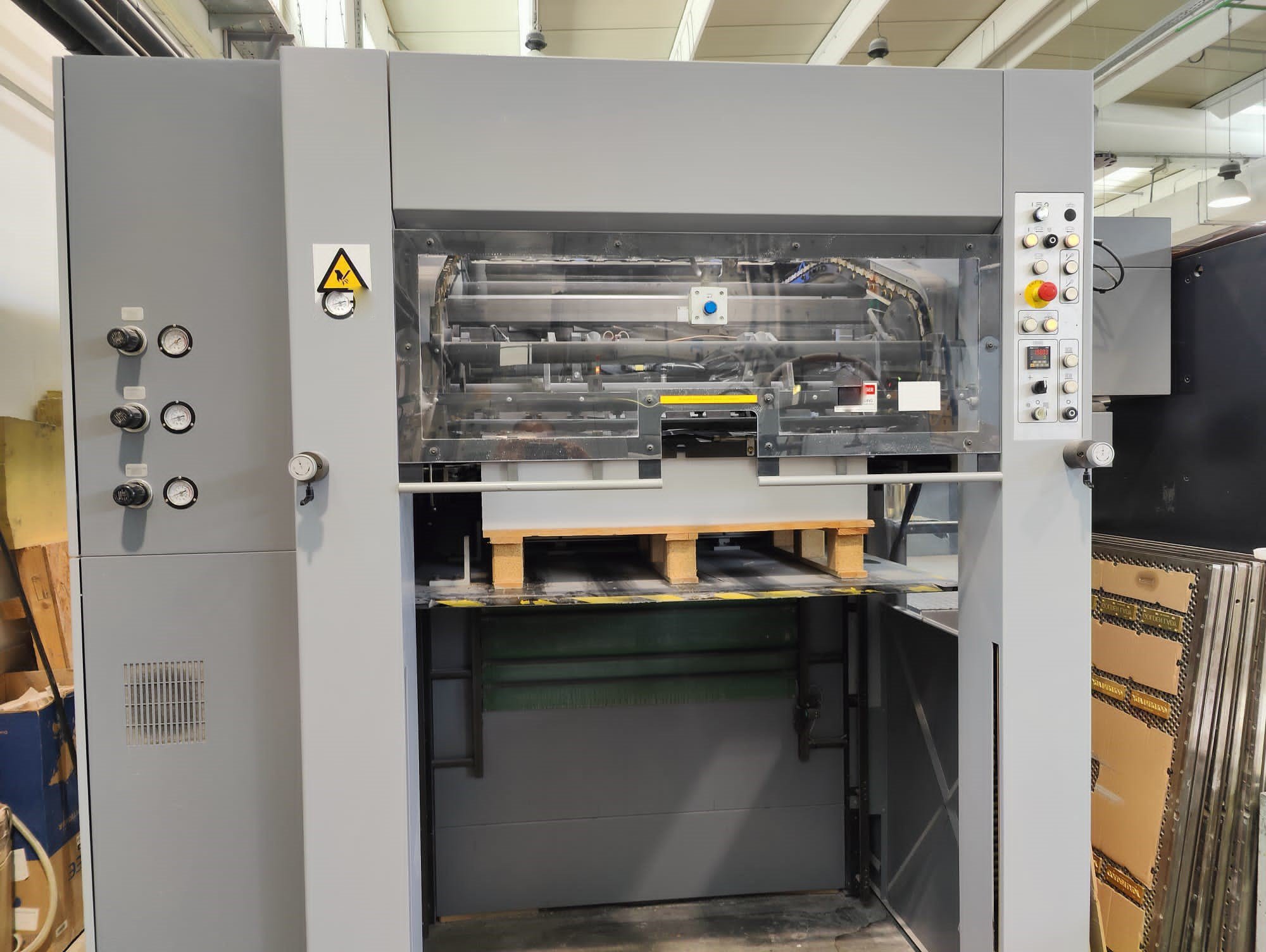

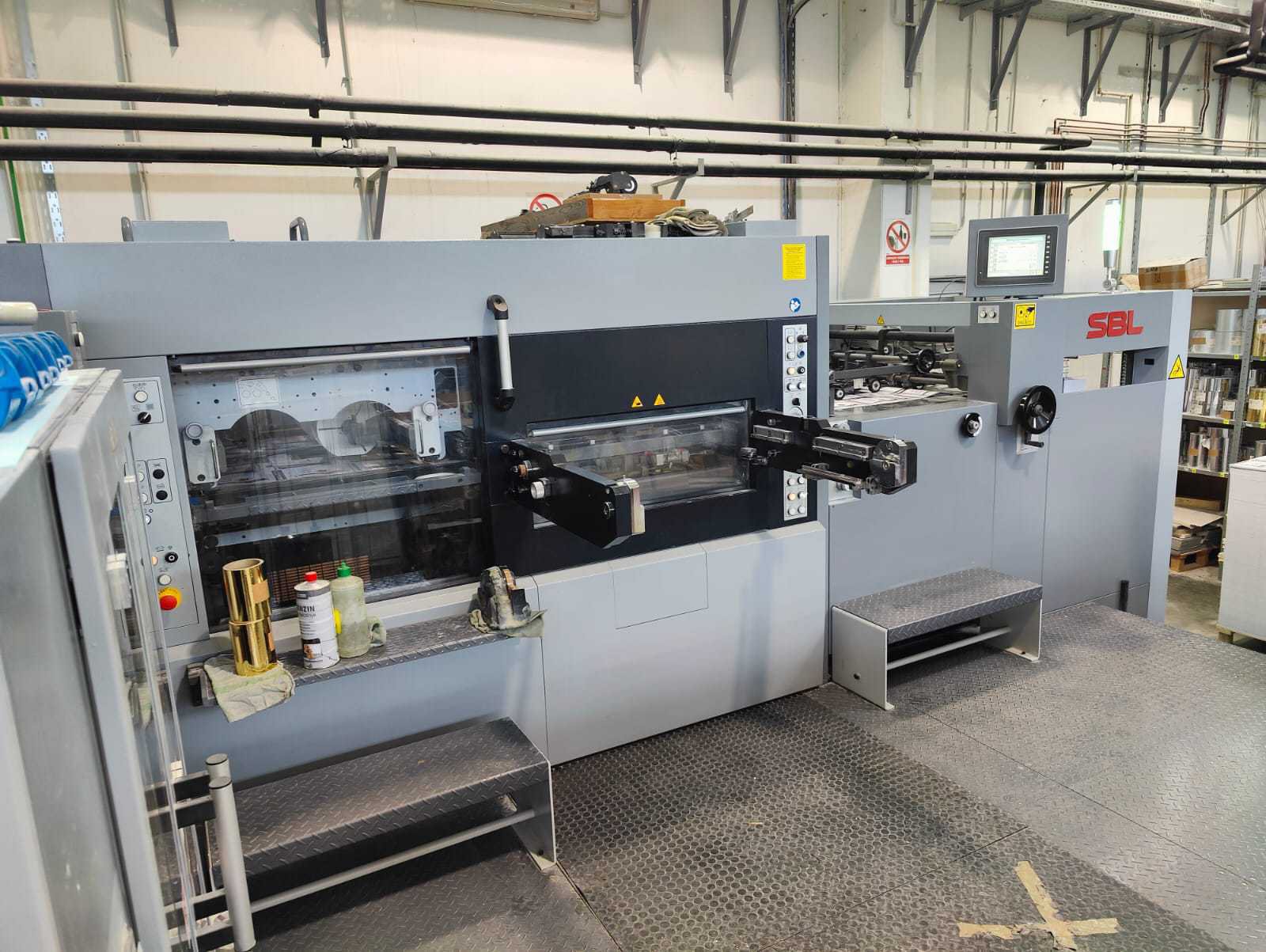

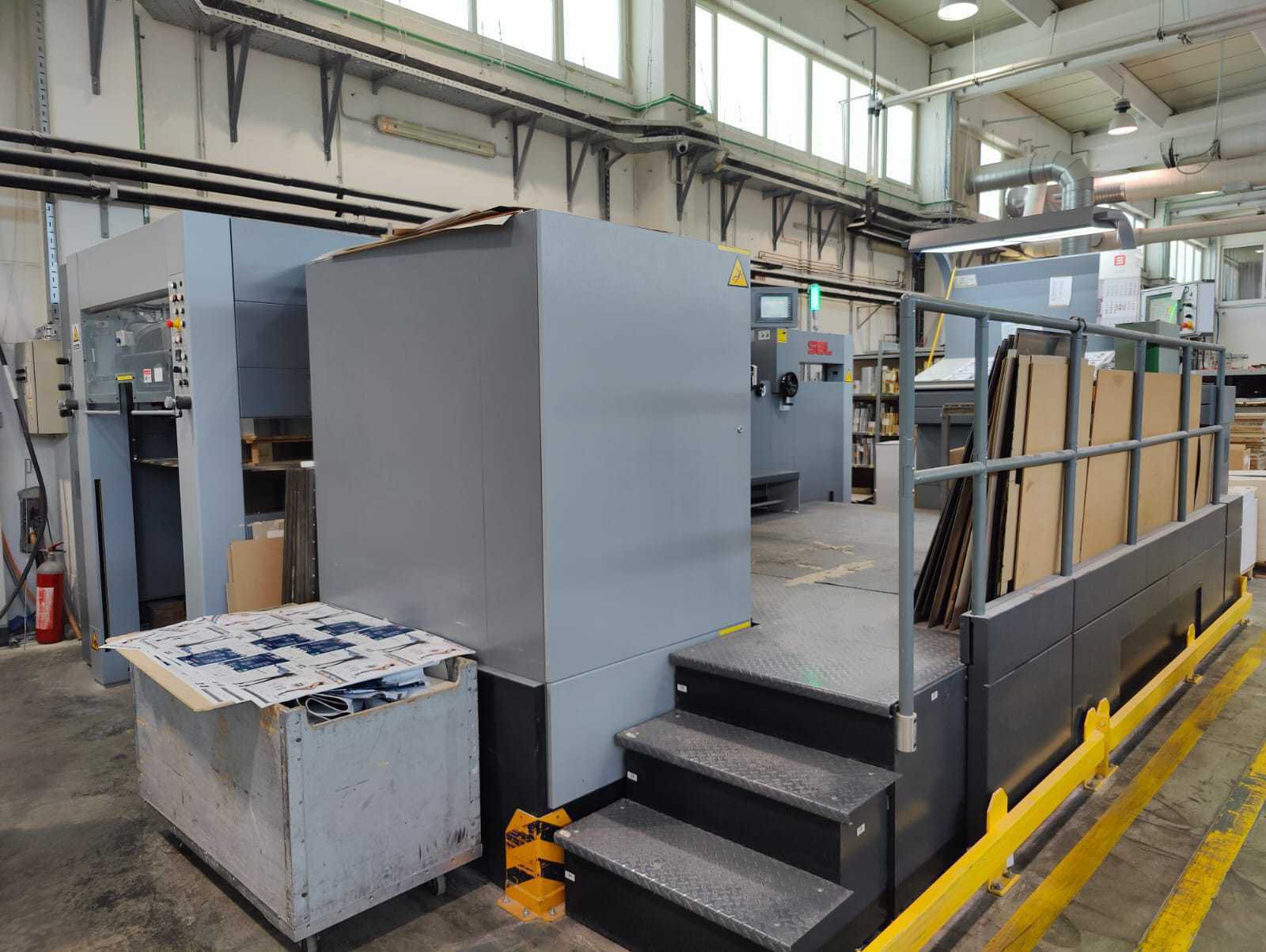

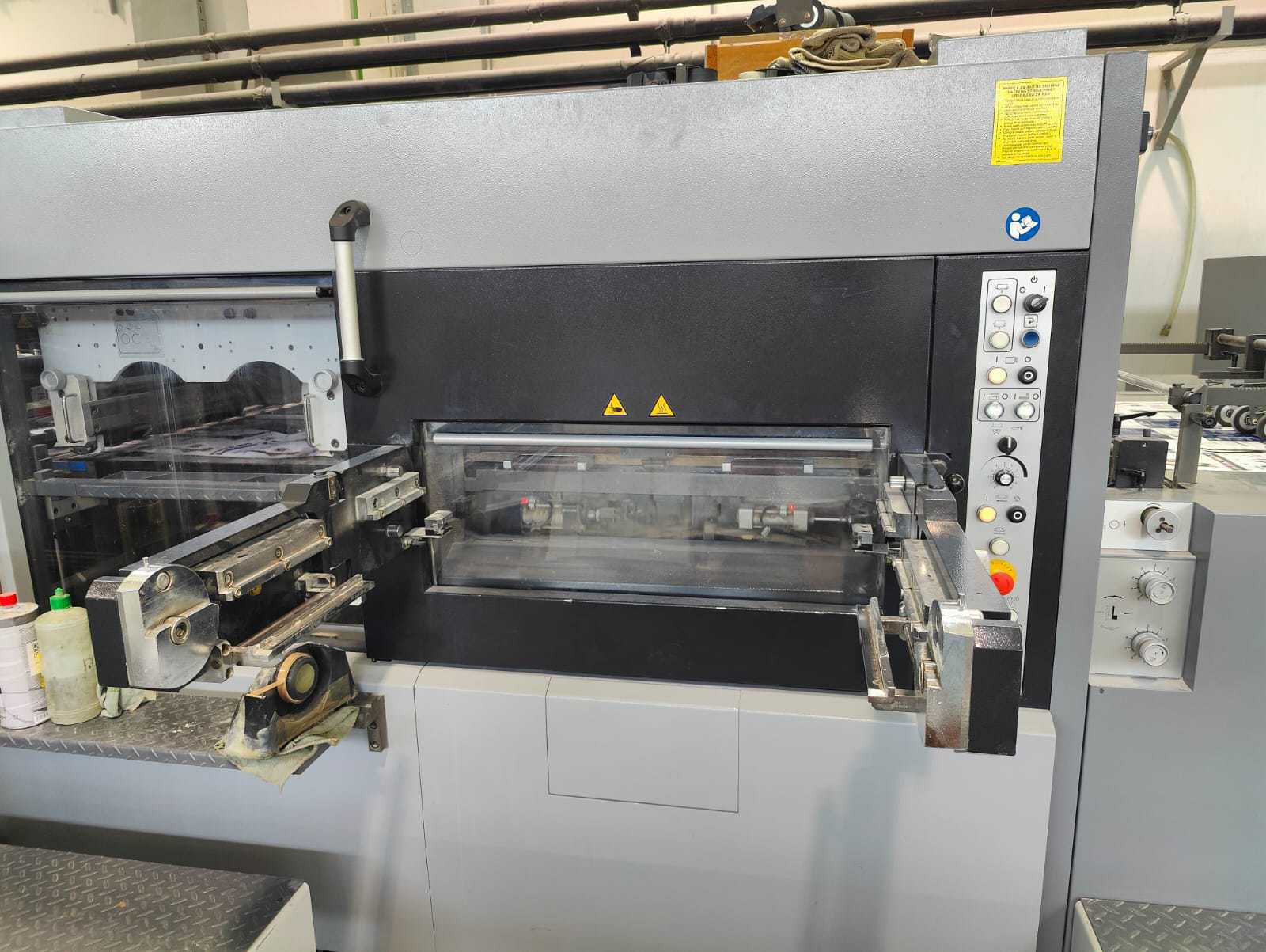

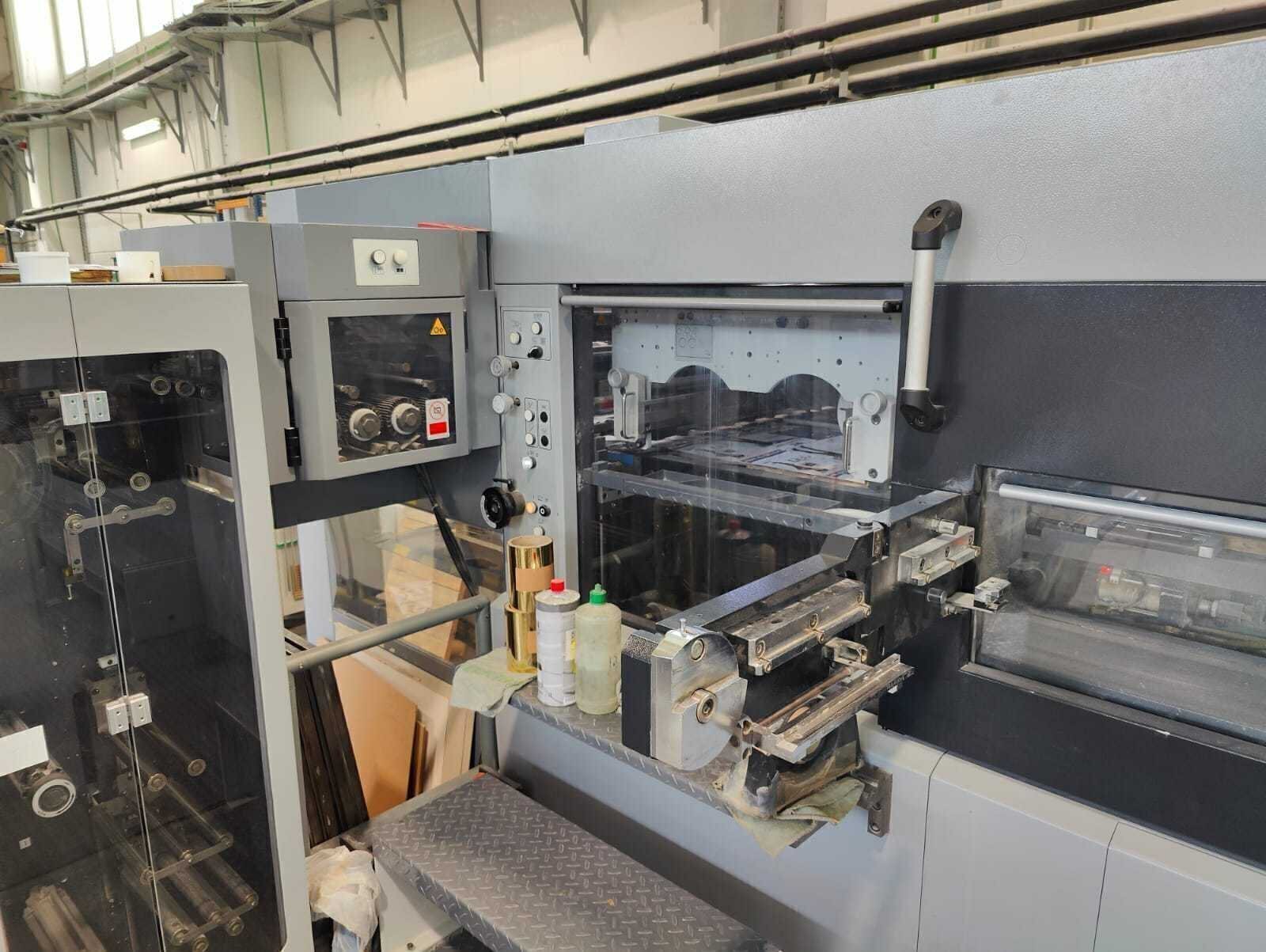

Model SBL-1050EFTotal running hours approx. 15.000Total die-cutting sheets approx 25 mioAutomatic Platen Foil Stamping and Die Cutting(No stripping device)TOUCH SCREEN MONITOR SYSTEMREGISTER DEVICE DIE-CUTTING SECTIONHONEYCOMB HEATING SYSTEMAUTOMATIC IMPRESSION ON/OFF SYSTEMFOIL CONTROL SYSTEMHEATER ZONE CONTROL CENTERFOIL REWINDERMax. paper size: 1050×750 mmMin. paper size: 400×370 mmMax. die-cutting paper size: 1040×730 mmMin. gripper margin 9.5 mmDie-cutting force: 300 TonsInner size of die chase: 1144×760 mmCutting plate size: 1080×736 mmRange of material thickness: 0.1 ~ 2 mm (80~1400 gsm)Corrugated paper ≦4mmHeight of cutting rules: 23.6 mmMax. punching speed: 7500 s/hRegister tolerance ±0.075 mmMain power 20KVAFeeder pile height with pallet: 1200 mmFeeder pile height with pallet (without non-stop): 1400 mmDelivery pile height 1040 mmSmall sheet device (option): 350x300 mmLongitudinal puller shafts: 3Transeversal puller shafts –Longitudinal maximum foil diameter φ 240 mmTransverse maximum foil diameter –Longitudinal rewind shafts (option) 6 (up to 8)Transverse rewind shafts –Max. longitudinal rewind diameter: φ 400 mmMax. transverse rewind diameter –Max. stamp speed: 7.000 s/h20x Heating zonesHot foil stamping power: 35KVAOuter size of machine(mm) 5573 × 2356 × 2606 (LxWxH)Machine weight (approx.) 19.5 Tons
