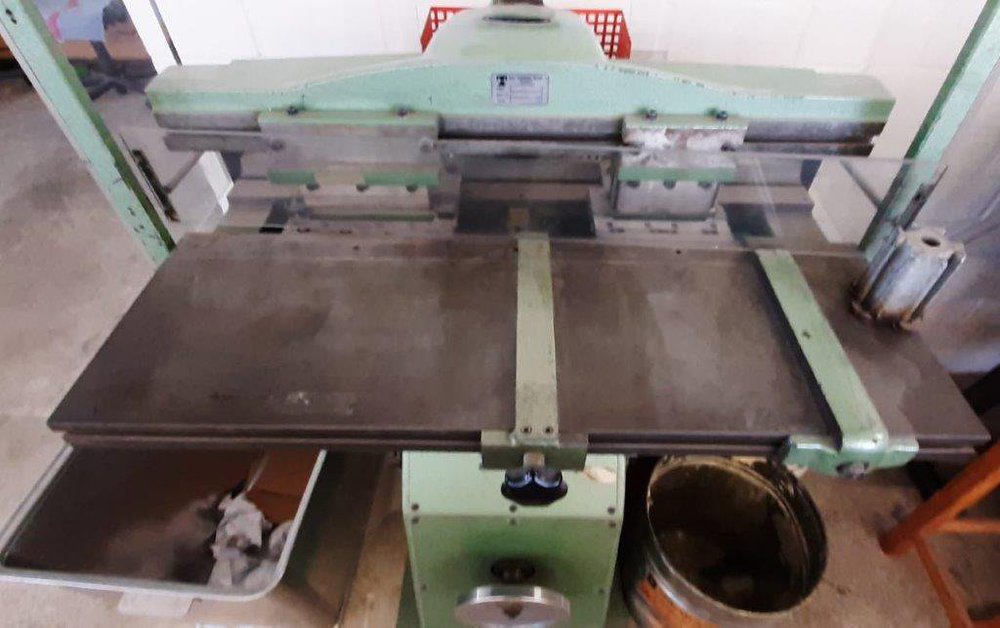

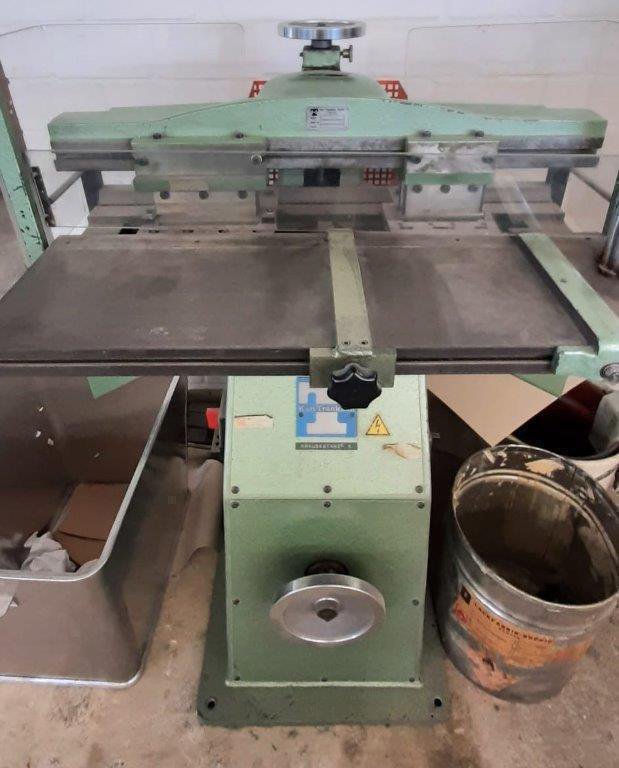

TRAENKLEIN USM 900 from 1986

It can be equipped with numerous easily interchangeable punching tools for a wide variety of punching jobs.<>The construction of the punching machine consists of three main parts: Base frame, tool slide and support table.<>The stroke is triggered by an electric foot switch, and the machine's stroke height can be adjusted according to the shape of the tool and the material being punched. <>Waste produced during punching falls off to the side via two troughs and can be collected in containers.<>+for punching paper, cardboard and plastic with upper and lower knife.<>+electr. equipment: gear brake motor 400 volt, 3 Ph,50 Hz., 1,5 kW<>+stack height max. 80 mm<>+stroke max. 100 mm<>+table size 900 x 480 mm<>+Space requirement 100 x 95 x 140 cm<>+Net weight 350 kg
